Width:
96mm
Length:
101mm
Series:
EPC3016
IP Rating:
IP65
Input Type:
Zirconia, Thermocouple, Pyrometers, PT100/1000, 80 mV, 4 to 20 mA, 40 mV, 2 V, 0 to 20 mA, 0 to 10 V, 0.8 V
Mount Type:
Panel Mount
Diagnostics:
Yes
Output Type:
Triac Output, Relay Form A, Logic I/O, Form C, DC Analogue Output
Panel Depth:
90mm
Control Type:
On-Off, PID, Valve Positioning Control

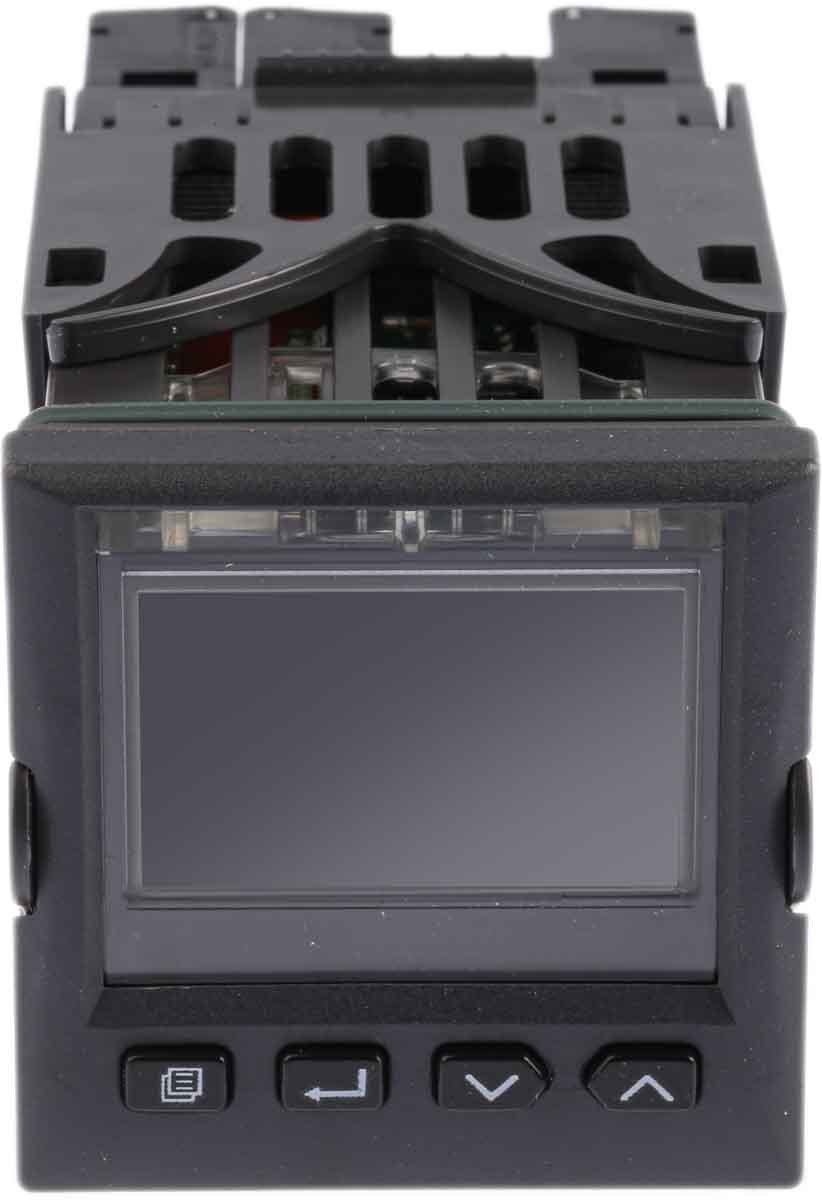

Display Type:
High Visibility LCD With Backlight
Product Type:
PID Controller
Digital Comms:
Modbus RTU, Serial (EIA-485), Ethernet/Modbus TCP, EI-Bisynch, EIA-422, EIA 232, Bacnet, EtherNet/IP

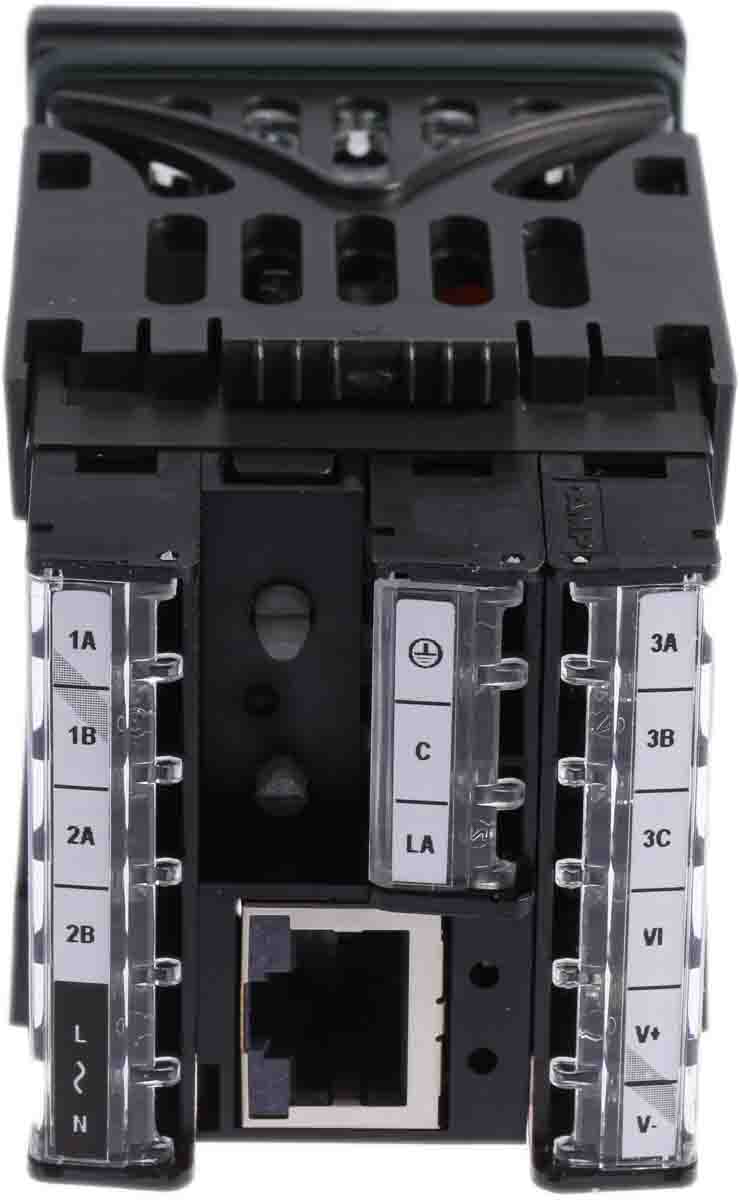

Terminal Type:
Screw
Maximum Current:
2A
Maximum Voltage:
264V
Number of Inputs:
2
Number of Outputs:
3
Energy measurement:
Yes
Standards/Approvals:
RoHS, REACH, FM, EN ISO 13849-1, EN 61326-1, EN 61010-1, EN 60529, EN 14597 TR, cUL, CE, Achilles Level 1, WEEE, UL
Maximum Supply Voltage:
230V ac
Maximum Operating Temperature:
55°C
Minimum Operating Temperature:
0°C
