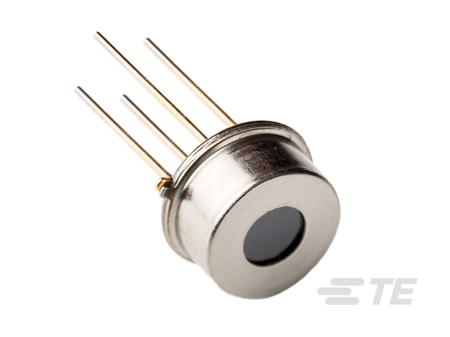

The TSD is a contactless temperature measurement system located in a TO5 package. The TSD includes an infrared sensor (thermopile) and a sensor signal conditioner. The TSD can be interfaced to any microcontroller by an I2C interface. This microcontroller has to calculate the temperature results based on the ADC values and the calibration parameters 0°C … +100°C measurement range
Small size
Up to ±1°C accuracy
I2C Interface
Low current consumption
Operating Temperature Range: -10°C … +85°C
Applications
Contactless temperature measurement
Climate control
Industrial process control
Household Applications
