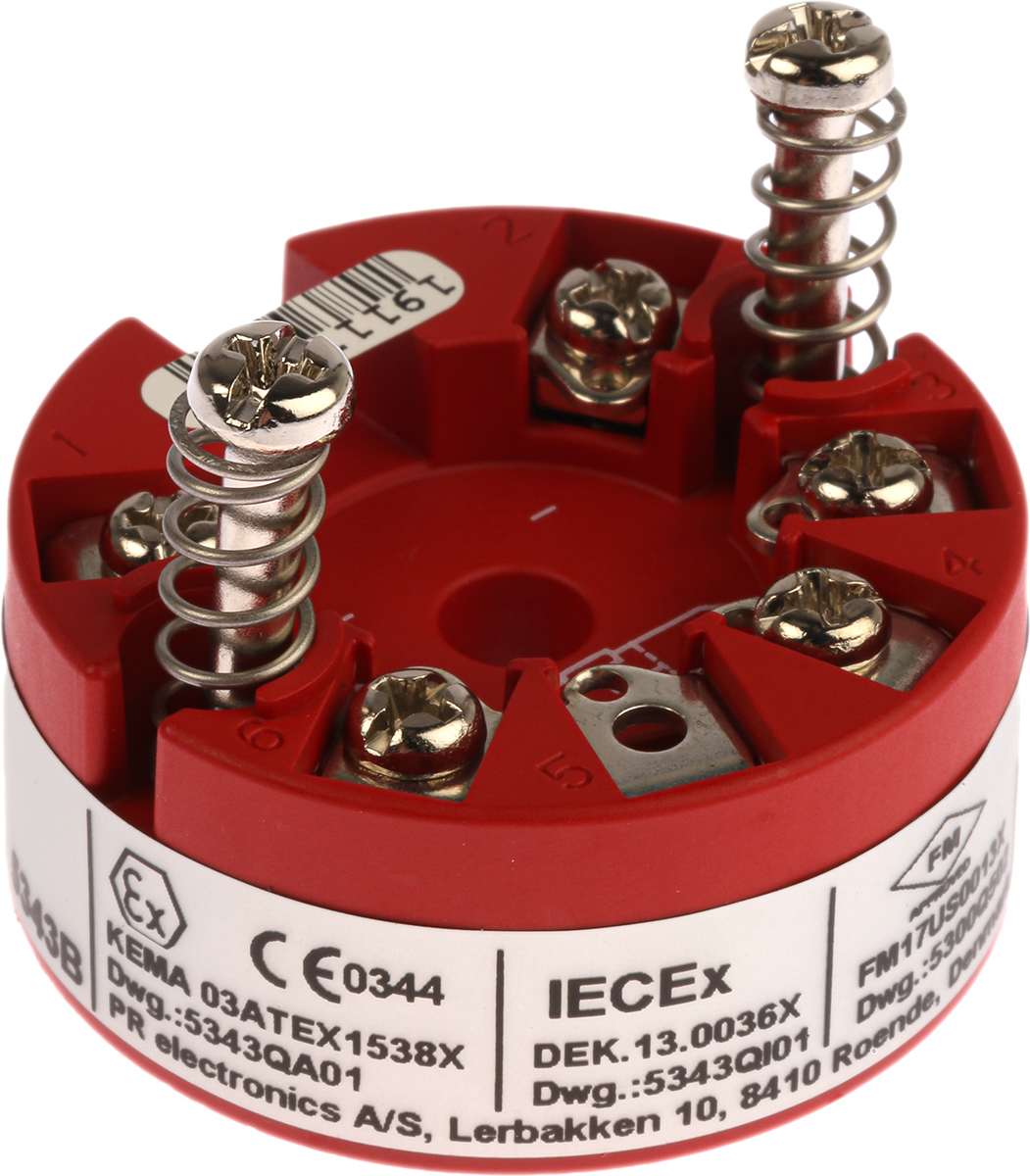

5343 Type - 2-wire Level Transmitter PR Electronics 5343 is a sensor head-mounted 2-wire programmable level transmitter with high measurement accuracy suitable for measuring liquid levels in a wide range of industry processes. The transmitter can take in potentiometer signals from reed switch chains, which are used for measuring liquid levels – for instance, in a tank. The 5343 level transmitter is programmable via the PR 5909 Loop Link (7967020) and PReset software. Features and Benefits • 5343A is the Standard type (stock-no. 827-5432)
• 5343B is the version with ATEX, FM, IECEx & INMETRO (stock-no. 796-7127)
• Potentiometer or Ohmic input
• Programmable sensor error value
• High measurement accuracy
• Unique process calibration function
• User-defined linearization function can be activated
• The transmitter is protected against polarity reversal
• DIN form B sensor head mounting
