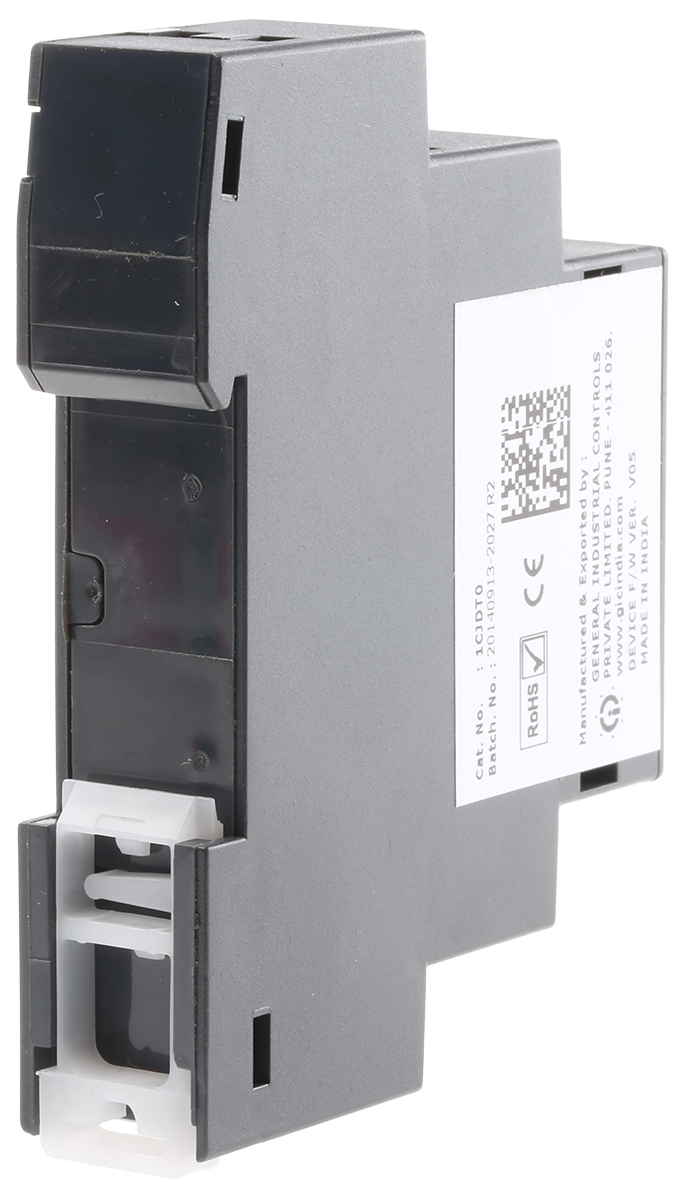

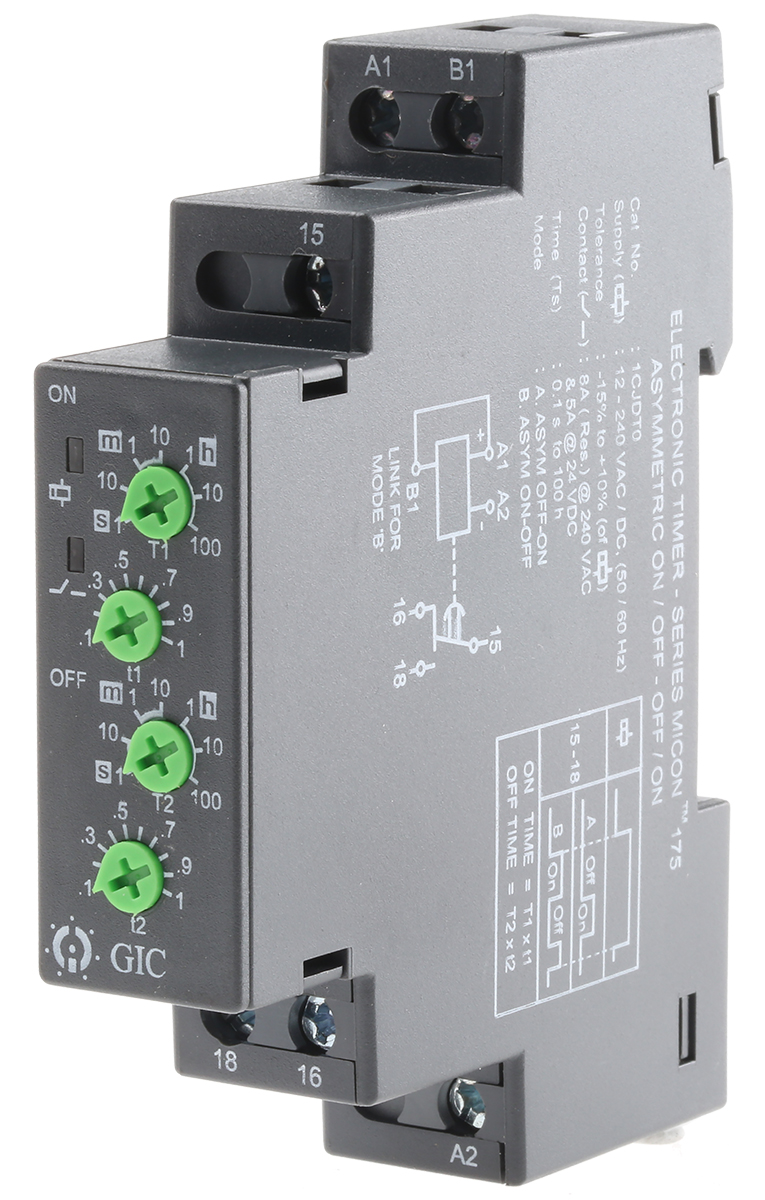

GIC Multi-function Timer Relay The GIC Micon 175 Series multi-function timer relay is solid-state, compact equipment with high precision. It performs different delay functions like asymmetric off/on and asymmetric on/off in the range of 0.1 seconds to 100 hours. This timer relay has a wide range of programming features that provides the user with a comprehensive range of timing functions to suit a wide variety of applications. Due to the highly versatile voltage range, this timer relay can be installed into new and existing applications in an extremely hassle free way. Its affordability, optimum space management, and high performance make it ideal for a wide range of applications in process control environments. Features and Benefits Fine adjustment of the selected time range
SPDT 1C/O contact configuration with relay output of 5A at 24VDC
The supply voltage ranges from 12VAC/VDC to 240VAC/VDC for added flexibility
Reset time of 200ms
Screw terminal type
2 different functions available
LED Indications for power and relay status
On time and off time settings can be independently set for further customisation for your application
Low power consumption helps to keep running costs down Applications Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control Certifications UL approved
IP20 rated terminals
IP30 rated enclosure
IP40 rated front side
CE certified
cULus certified
IEC 61000-3-2
ESD IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-11
IEC 61000-4-29
CISPR 14-1
IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-6
IEC 60068-2-27
