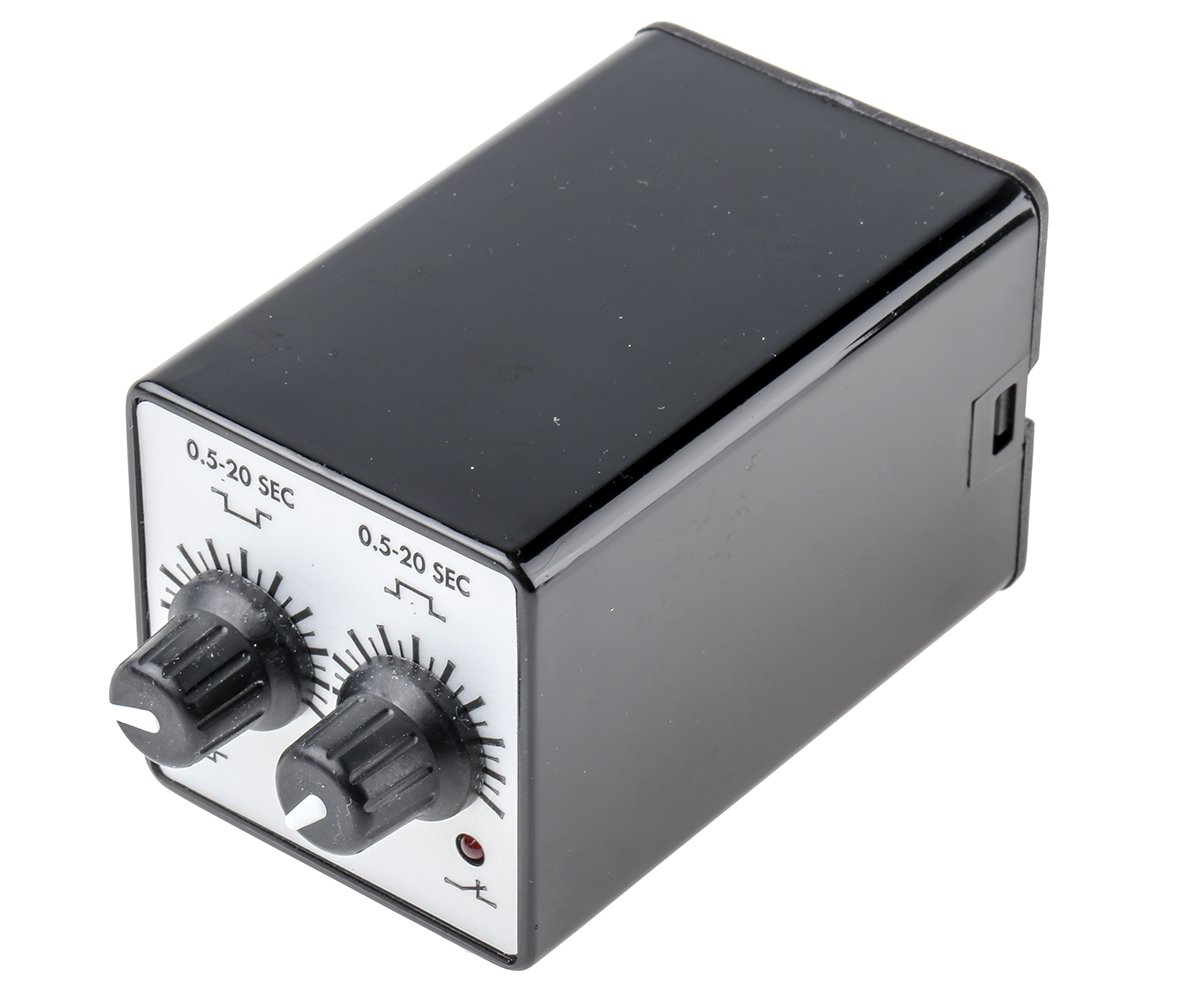

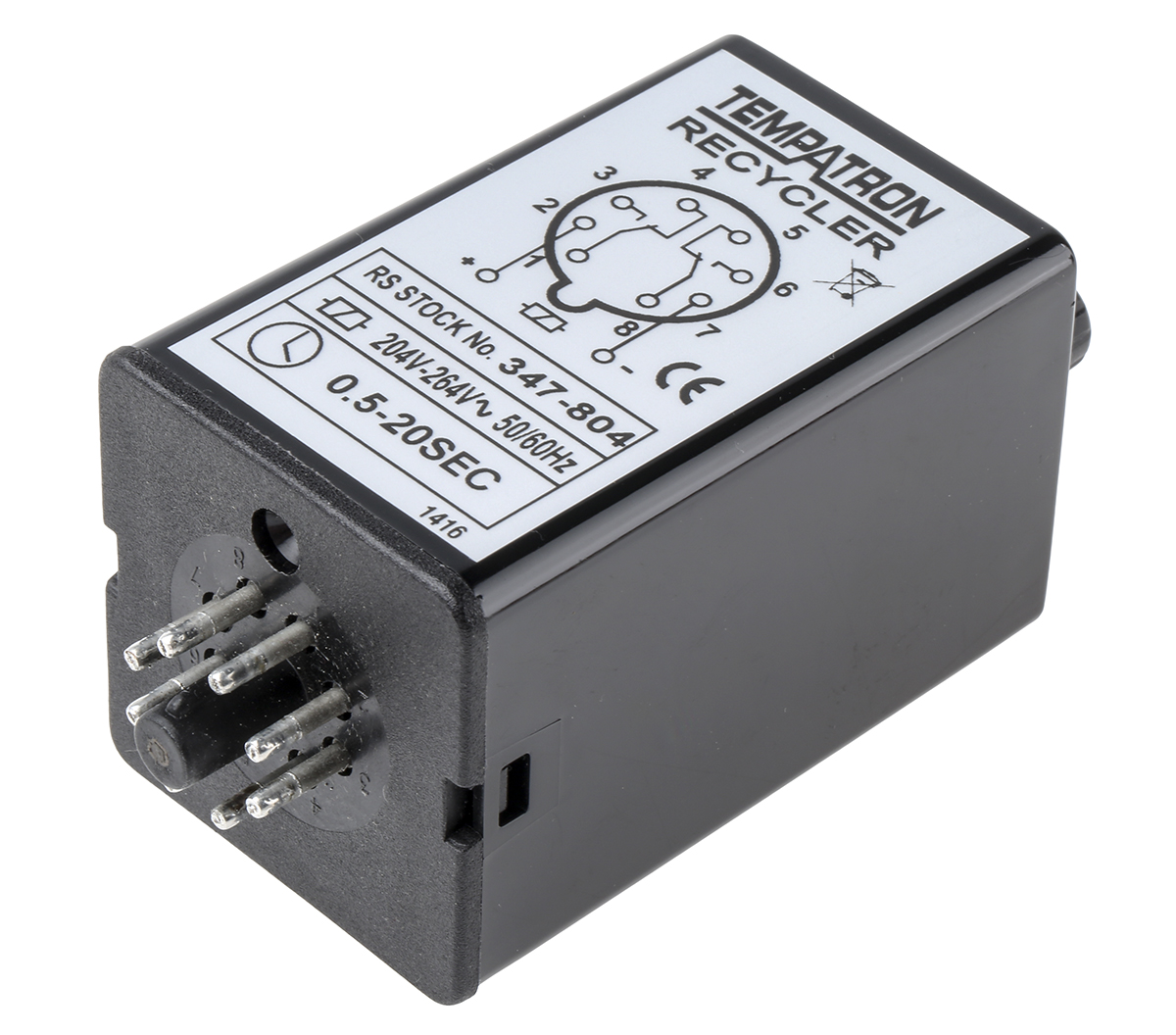

Plug In Timer Relay, 240V ac, 2-Contact, 0.5 → 20s, 1-Function, DPDT

Supply Voltage:

240V ac

Mounting Type:

Plug In

Mode of Operation:

Delay Cycle

Time Range:

0.5 → 20s

Number of Contacts:

2

Number of Timer Functions:

Single

Contact Configuration:

DPDT

Time Increment:

Seconds

Maximum Current:

10A

Maximum Voltage:

240 V ac, 30V dc

Terminal Type:

8-Pin Connector

Switch Configuration:

DPDT

Width:

48mm

Power Supply:

External

Length:

48mm

Maximum Operating Temperature:

+60°C

Depth:

108mm

Time Delay:

(Reset) 200ms

Minimum Operating Temperature:

-10°C

Contact Material:

Silver Cadmium Oxide
