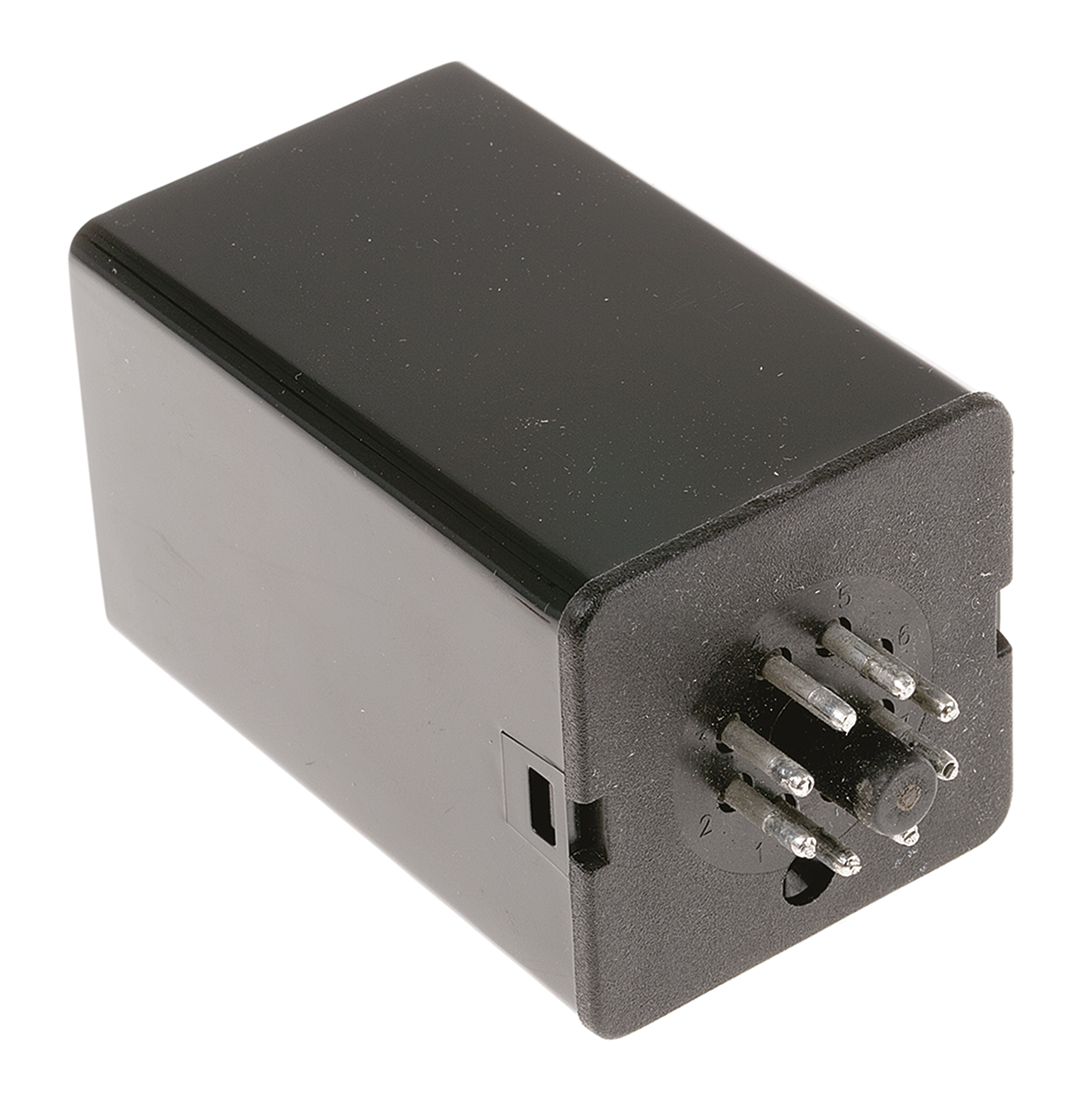

Plug In Timer Relay, 24V dc, 2-Contact, 0.5 → 20s, 1-Function, DPDT

Supply Voltage:

24V dc

Mounting Type:

Plug In

Mode of Operation:

ON Delay Energise

Time Range:

0.5 → 20s

Number of Contacts:

2

Number of Timer Functions:

Single

Contact Configuration:

DPDT

Time Increment:

Seconds

Maximum Current:

10A

Switch Configuration:

DPDT

Terminal Type:

8-Pin Connector

Power Supply:

External

Width:

48mm

Depth:

108mm

Maximum Operating Temperature:

+60°C

Length:

48mm

Contact Material:

Silver Cadmium Oxide

Time Delay:

(Reset) 100ms

Minimum Operating Temperature:

-10°C
