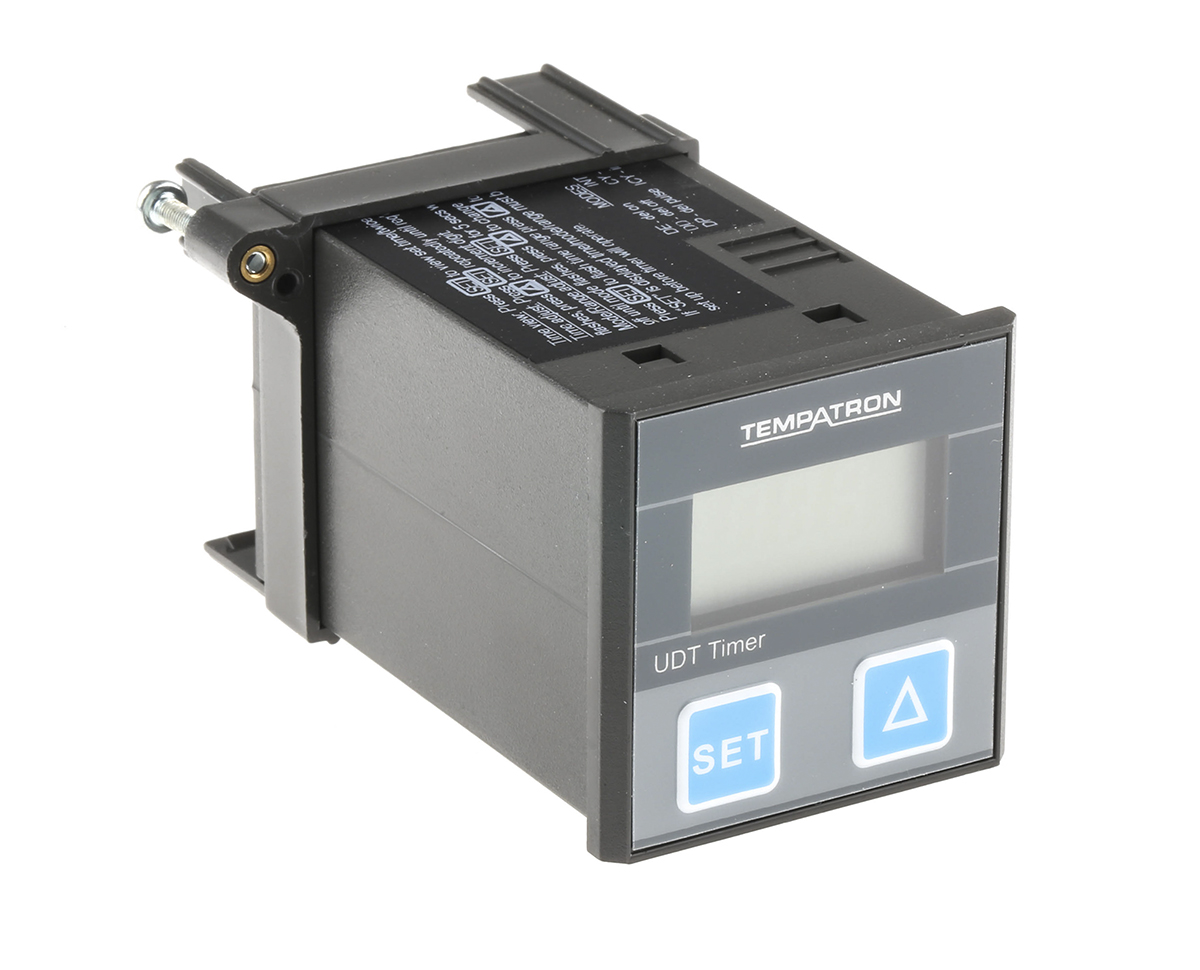

Plug In Timer Relay, 18 → 264 V ac, 18 → 300V dc, 1-Contact, 0.01 → 99.9 min, 0.01

Supply Voltage:

18 → 264 V ac, 18 → 300V dc

Mounting Type:

Plug In

Time Range:

0.01 → 99.9 min, 0.01 → 99.9 h, 0.1 → 99.9s

Number of Contacts:

1

Number of Timer Functions:

Multi Function

Contact Configuration:

SP-NO/NC

Time Increment:

Hours, Minutes, Seconds

Maximum Voltage:

30 V dc, 240V ac

Terminal Type:

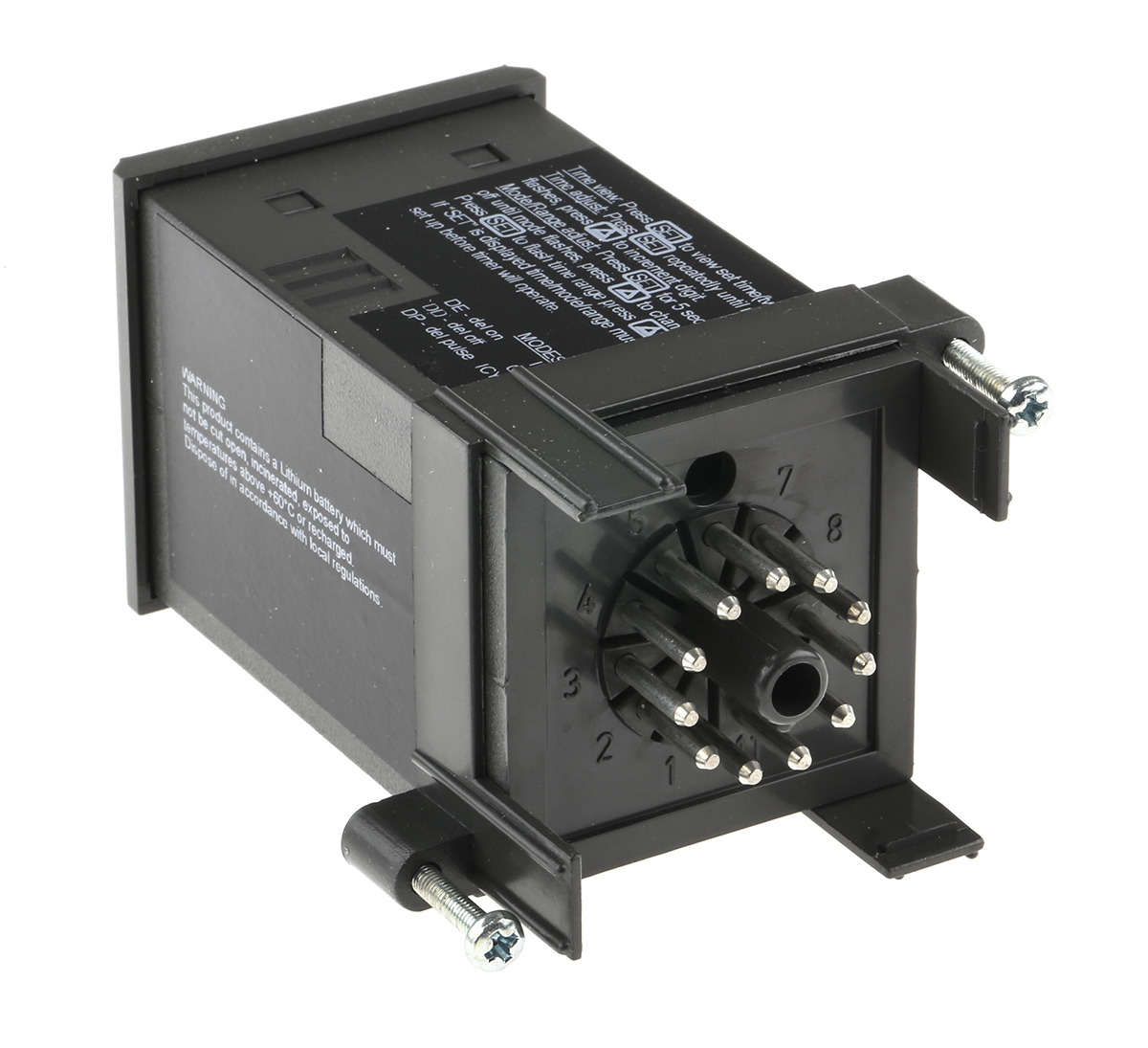

11-Pin Connector

Switch Configuration:

SPDT

Power Supply:

External

Width:

48mm

Maximum Operating Temperature:

+60°C

Length:

48mm

Depth:

89.5mm

Contact Material:

Silver Cadmium Oxide

Minimum Operating Temperature:

-20°C
