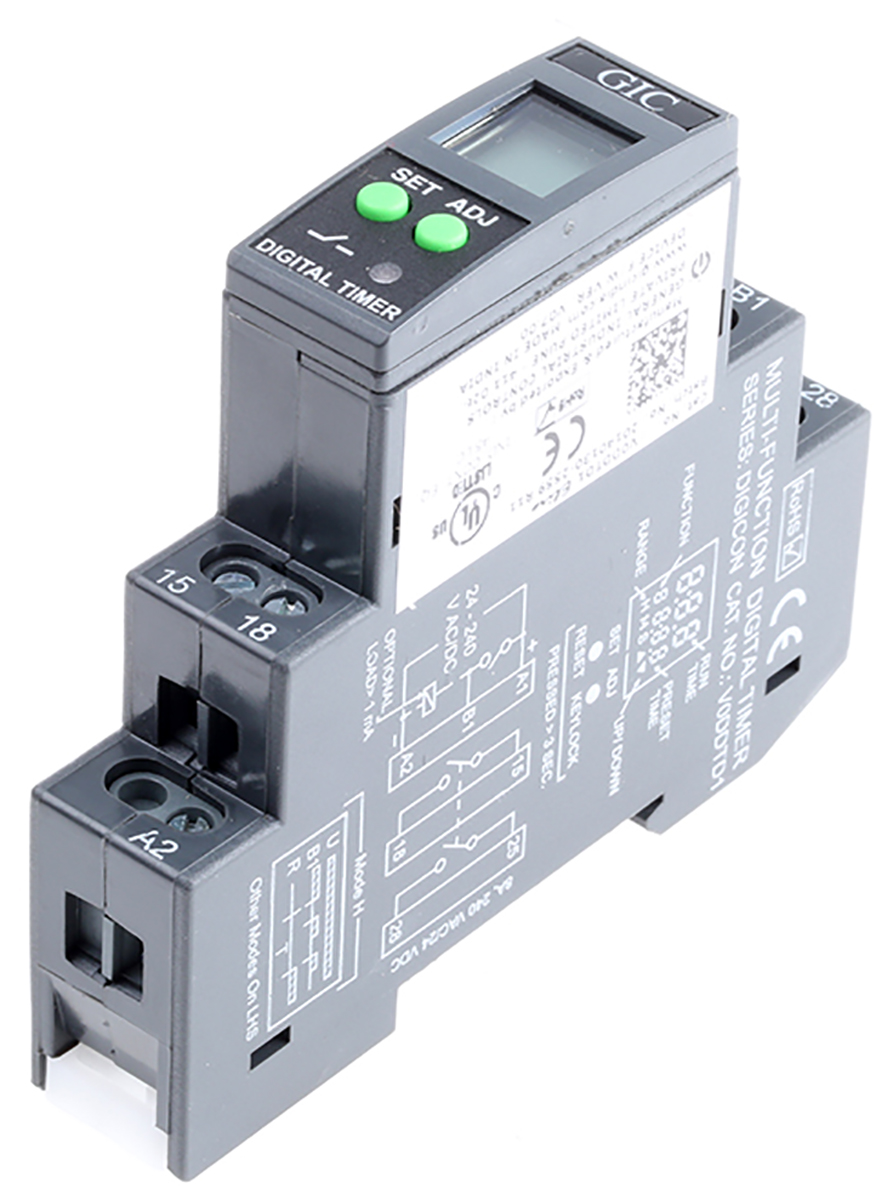

DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.1 s → 999h, SPDT

Supply Voltage:

24 → 240V ac/dc

Mounting Type:

DIN Rail

Mode of Operation:

Cyclic OFF/ON, Cyclic ON/OFF, Interval, ON Delay, One Shot Output, Signal OFF Delay, Signal OFF/ON, Signal ON/OFF

Time Range:

0.1 s → 999h

Number of Contacts:

1

Number of Timer Functions:

Multi Function

Contact Configuration:

SPDT

Time Increment:

Hours, Seconds

Maximum Current:

(dc) 2 A, (ac) 3A

Maximum Voltage:

240 V ac, 250V dc

Terminal Type:

Screw

Switch Configuration:

DPST

Width:

17.5mm

Minimum Voltage:

125V ac/dc

Maximum Operating Temperature:

+55°C

Minimum Current:

0.1A

Depth:

76mm

Length:

89mm

Contact Material:

Silver Tin

Minimum Operating Temperature:

-10°C
