Toggle Switches, Standard Lever Panel mount switches with a large variety of contact configurations Solder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS) Brass actuator and Diallyl Phthalate case Silver contacts Panel cut-out 6.35 mm Note For biased switches '(on)' refers to momentary 'on' position Approvals UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO Approvals UL; CSA; CECC; LNZ; GAM T1; (Europe); MUAHAG; NATO; VDE Momentary function (spring-loaded return): The switch or contact breaker returns to its original position when the load is removed. E.g. bell push) Stay-put function : The switch or contact breaker remains (stop) in the new position after the load has been removed.

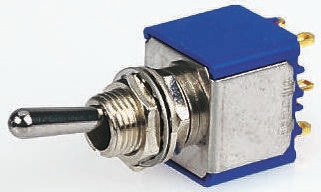

Apem 3PDT Toggle Switches, Standard Lever Panel Mount Switches, On-On

Manufacturer:
Manufacturer Part No:
5656ADBGK2V
Enrgtech Part No:
ET13925357
Warranty:
Manufacturer
£ 28.00 £ 19.60
Checking for live stock
Contact Resistance:
10mΩ
Actuator Length:
14.75mm
Illuminated:
No
Mounting Type:
Panel Mount
Voltage Rating:
30V dc
Contact Current Rating:
4 A @ 30 V dc
Panel Cut Out Diameter:
6.5mm
Contact Configuration:
3PDT
Panel Cut Out Size:
6.5mm
Actuator Material:
Nickel Plated Brass
Operating Temperature Range:
-40 → +85°C
Minimum Operating Temperature:
-40°C
Mechanical Life:
100000Operations
Switch Operation:
On-On
Maximum Operating Temperature:
+85°C
Terminal Type:
Solder Lug
Contact Material:
Gold Plated Silver
pdf icon
Datasheet(Technical Reference)
pdf icon
5000 Series Toggle Switches Datasheet(Technical Reference)
