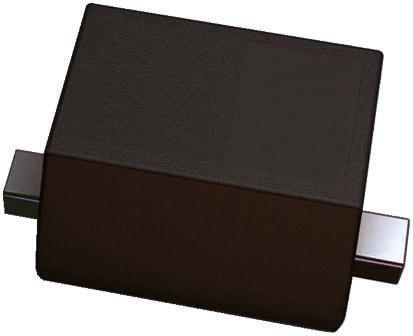

PESD5V0X1UAB,115, Uni-Directional ESD Protection Diode, 2-Pin SOD-523

Direction Type:

Uni-Directional

Diode Configuration:

Single

Maximum Clamping Voltage:

9V

Minimum Breakdown Voltage:

5.8V

Mounting Type:

Surface Mount

Package Type:

SOD-523

Maximum Reverse Stand-off Voltage:

5.5V

Pin Count:

2

Maximum Peak Pulse Current:

2A

ESD Protection:

Yes

Number of Elements per Chip:

1

Minimum Operating Temperature:

-55 °C

Maximum Operating Temperature:

+150 °C

Dimensions:

1.25 x 0.85 x 0.65mm

Width:

0.85mm

Length:

1.25mm

Height:

0.65mm

Maximum Reverse Leakage Current:

100nA
