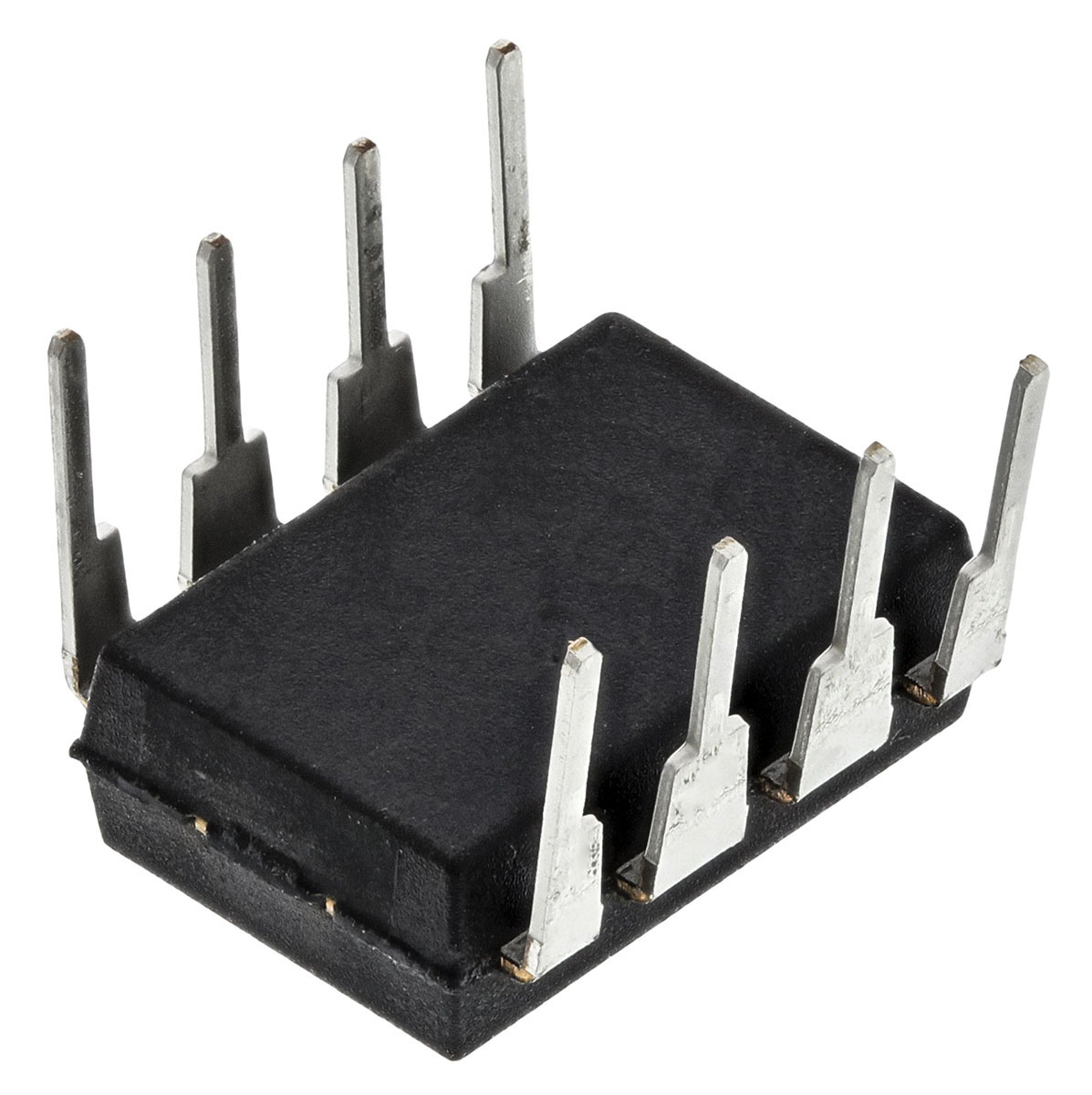

AD8011ANZ , Video Amplifier IC, 328MHz 2000V/μs, 8-Pin PDIP

IC Type:

Video Amplifier IC

Power Supply Type:

Dual, Single

Typical Single Supply Voltage:

5 V, 9 V

Typical Dual Supply Voltage:

3 V, 5V

Number of Channels per Chip:

1

Typical Slew Rate:

2000V/µs

Typical Gain Bandwidth Product:

328MHz

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

8

Dimensions:

9.27 x 7.24 x 3.43mm

Height:

3.43mm

Length:

9.27mm

Maximum Operating Temperature:

+85 °C

Minimum Operating Temperature:

-40 °C

Width:

7.24mm
