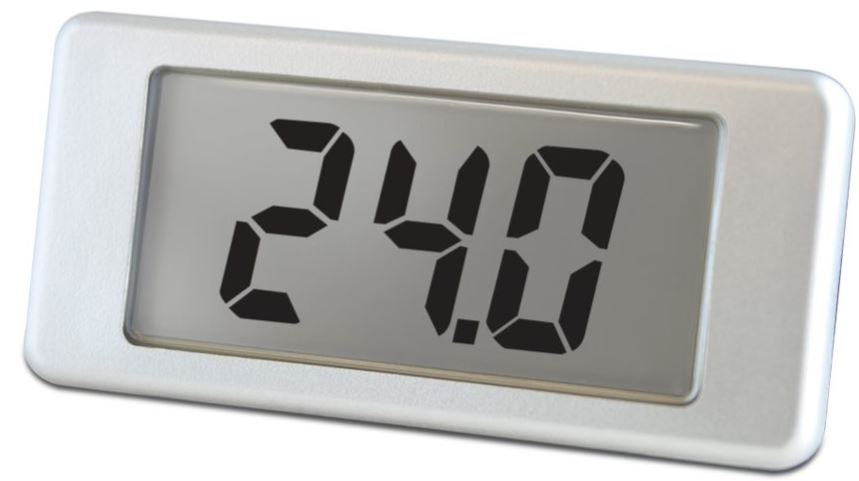

2-Wire LCD Voltmeter with single-Hole Mounting The EMV 1200 is an easy mount LCD digital panel meter. Featuring a 4 to 25V measurement range with 100mV resolution and is powered from the signal it is measuring. Fitted with a threaded stud which allows mounting of the product through a 5.5mm drill hole, this unique enclosure provides quick and easy mounting. Features and Benefits Single Hole Mounting
2-Wire operation
4 to 25V d.c. Full Scale Reading
12.5mm /0.5"" LCD Digit Height
Reverse Polarity Protection
Splash proof Certifications ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
