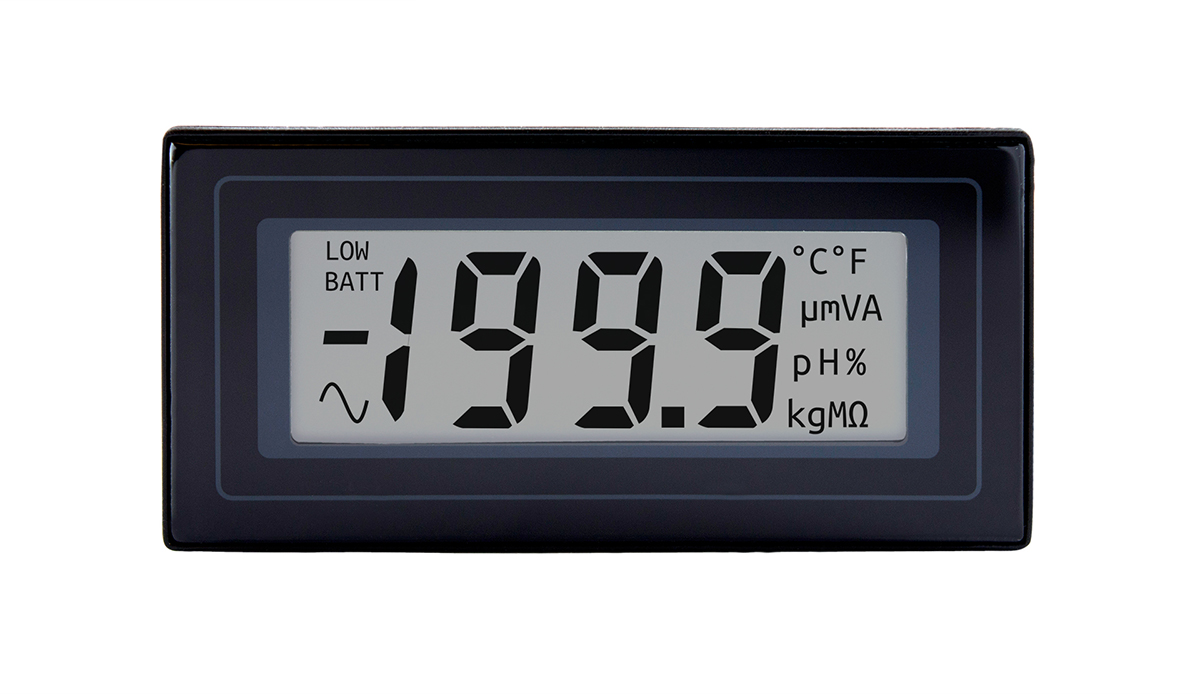

3 Digit LCD Voltmeter
The DPM 2000 from Lascar uses advanced components and construction techniques to provide an unrivalled combination of high performance and elegant appearance at a low cost.
The compact panel meter features a 3 digit LCD with 15mm digit height and low-profile bezel for mounting. The meter has a 200mV d.c. full scale reading, auto-zero, auto-polarity and programmable decimal points, plugging directly into a single-in-line (SIL) socket or it can be panel mounted using the snap-in bezel and window supplied. Features and Benefits 15mm (0.6"") Digit Height
Programmable Decimal Points
Auto-zero
Auto-polarity
200mV d.c. Full Scale Reading
The compact panel meter features a 3 digit LCD with 15mm digit height and low-profile bezel for mounting. The meter has a 200mV d.c. full scale reading, auto-zero, auto-polarity and programmable decimal points, plugging directly into a single-in-line (SIL) socket or it can be panel mounted using the snap-in bezel and window supplied. Features and Benefits 15mm (0.6"") Digit Height
Programmable Decimal Points
Auto-zero
Auto-polarity
200mV d.c. Full Scale Reading
Digital Voltmeter DC, LCD Display 3.5-Digits ±0.1 %
Manufacturer:
Lascar
Manufacturer Part No:
DPM 2000
Enrgtech Part No:
ET13845933
Warranty:
Manufacturer
£ 36.99
Checking for live stock
Current Type:
DC
Number of Digits:
3.5
Display Type:
LCD
Cutout Height:
36mm
Cutout Width:
72mm
Depth:
9mm
Supply Voltage:
7.5 → 14 V
Digit Height:
15 mm
Meter Accuracy:
±0.1 %
Analogue Effect:
Digits Only
Minimum Temperature:
0°C
Meter Type:
Voltmeter
