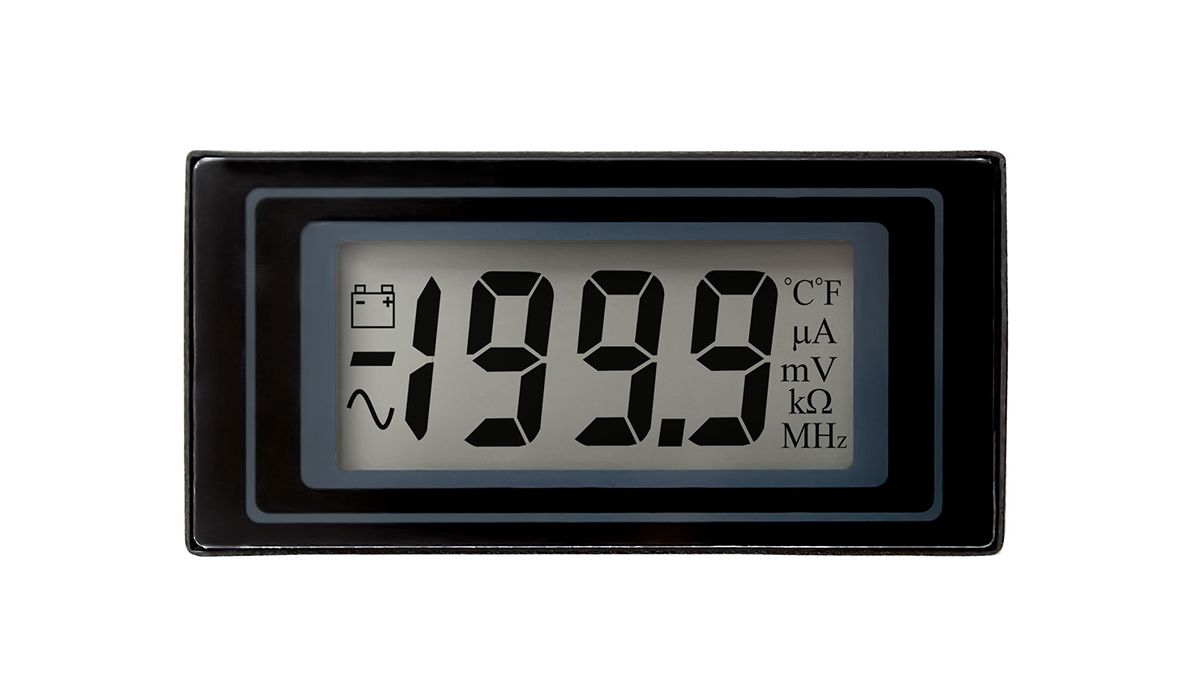

3 Digit LCD Voltmeter

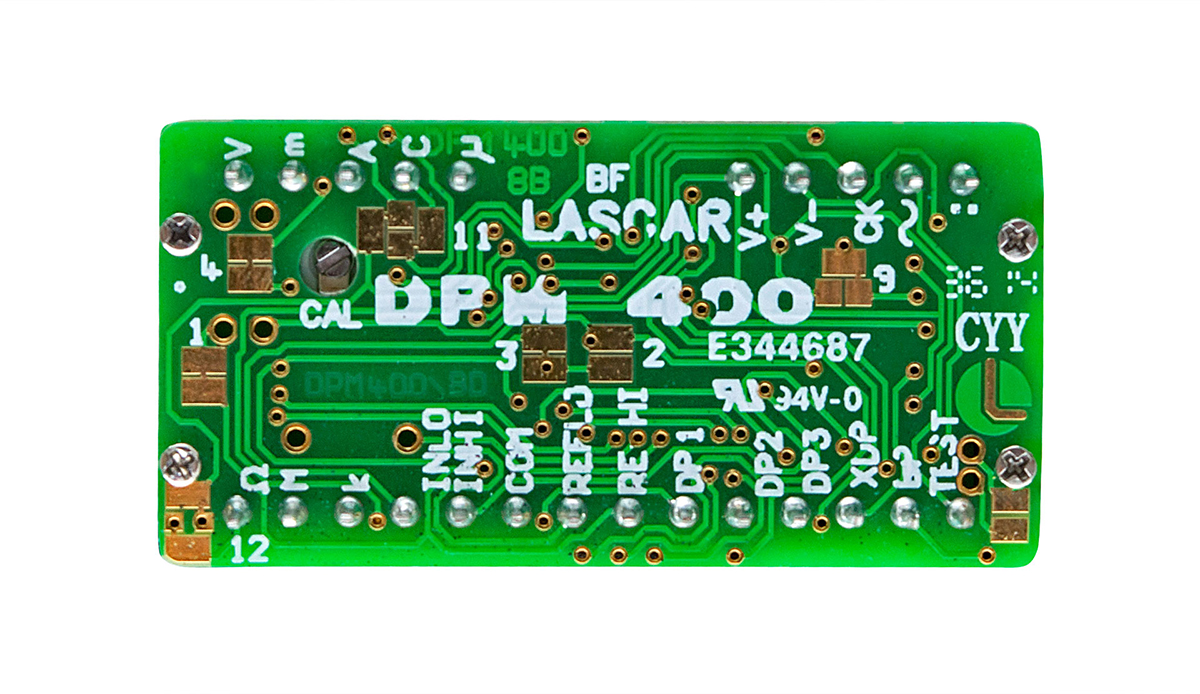

The DPM 400 features a 3 digit LCD with 10mm digit height annunciators and a low-profile bezel for mounting. The meter has a 28 pin DIL integrated circuit format and can be plugged directly into a DIL socket or can be panel mounted using the snap in bezel provided.
The bezel incorporates a flat reverse printed window, giving a superb appearance that cannot be damaged or removed by contact. This unique compact LCD meter is ideally suited to low or high volume applications. Features and Benefits 10mm Digit Height
Programmable Decimal Points
Auto-Zero
Auto-Polarity
200mV d.c. Full Scale Reading
Annunciators
The bezel incorporates a flat reverse printed window, giving a superb appearance that cannot be damaged or removed by contact. This unique compact LCD meter is ideally suited to low or high volume applications. Features and Benefits 10mm Digit Height
Programmable Decimal Points
Auto-Zero
Auto-Polarity
200mV d.c. Full Scale Reading
Annunciators
Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %
Manufacturer:
Lascar
Manufacturer Part No:
DPM 400
Enrgtech Part No:
ET13900661
Warranty:
Manufacturer
£ 34.99
Checking for live stock
Current Type:
DC
Number of Digits:
3.5
Display Type:
LCD
Cutout Height:
22mm
Cutout Width:
45mm
Depth:
9mm
Supply Voltage:
7 → 14 V dc
Digit Height:
10 mm
Meter Accuracy:
±1 %
Analogue Effect:
Digits Only
Minimum Temperature:
0°C
Meter Type:
Voltmeter
