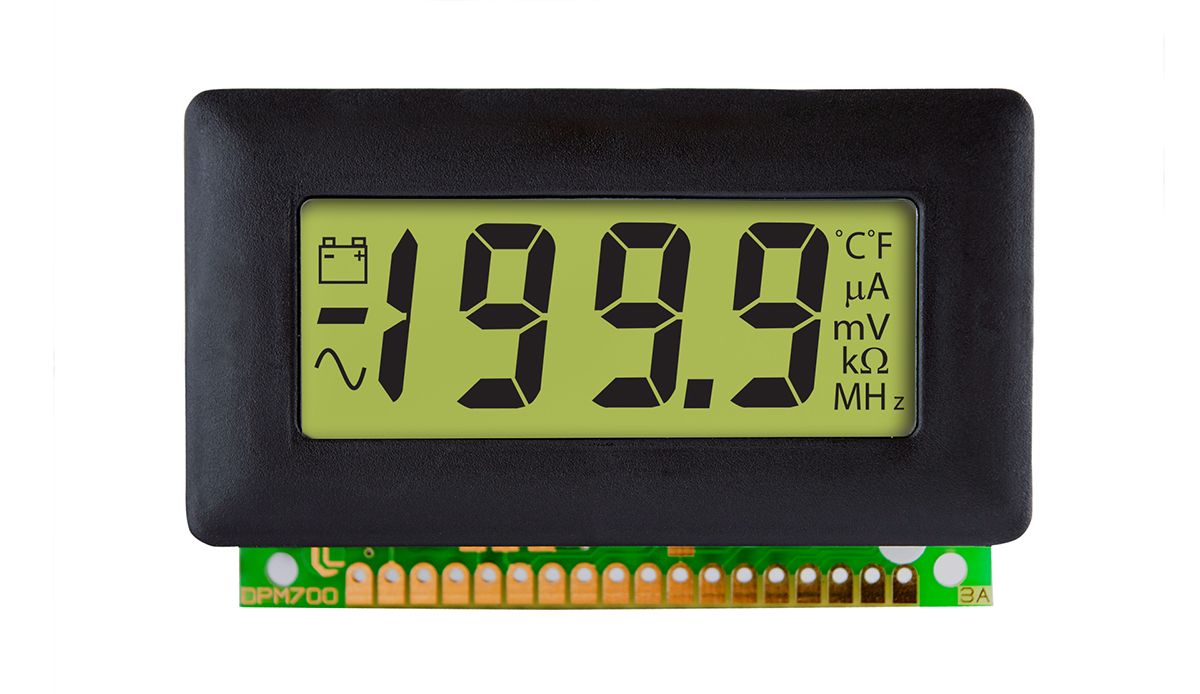

200mV LCD Voltmeter with LED Backlighting
Lascar's DPM 700 is a panel meter which features a 3 digit LCD with a 12.5mm digit height, annunciators and LED backlighting. Its ultra-low LCD meter uses advanced components and construction techniques to provide an unrivalled combination of high performance and elegant appearance at a low cost.
Features and Benefits
12.7mm Digit Height
Logic Selectable Decimal Points
Auto-Zero
Auto-Polarity
200mV d.c. Full Scale Reading
User Adjustable Low Battery Indication
Logic Selectable Decimal Points
Auto-Zero
Auto-Polarity
200mV d.c. Full Scale Reading
User Adjustable Low Battery Indication

Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %
Manufacturer:
Lascar
Manufacturer Part No:
DPM 700
Enrgtech Part No:
ET13907558
Warranty:
Manufacturer
£ 42.99
Checking for live stock
Current Type:
DC
Number of Digits:
3.5
Display Type:
LCD
Cutout Height:
32mm
Cutout Width:
62mm
Depth:
6.5mm
Supply Voltage:
5 → 14 V dc
Digit Height:
12.7 mm
Meter Accuracy:
±1 %
Analogue Effect:
Digits Only
Minimum Temperature:
0°C
Meter Type:
Voltmeter
