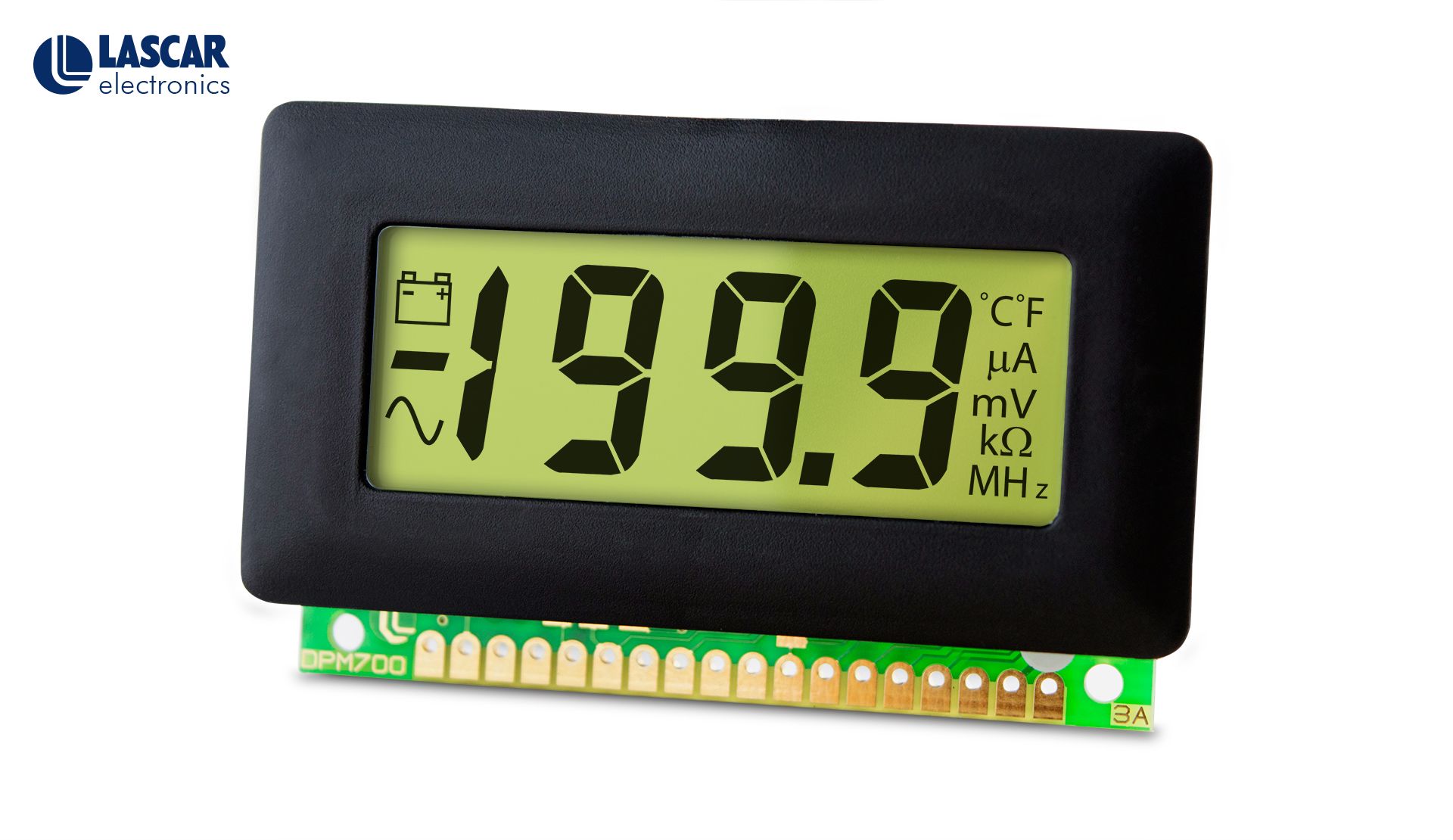

12.7mm, 3.5 Digit Green Back Lit Meter - Single Rail Input Twelve optional symbols, V, m, A, °F, °C, μ, M, k, Ω, Hz, ∼,:
Selectable decimal points (may be hard wired)
Outputs available for auto-ranging applications
Integral carrier and window, with separate mounting bezel
Electrical connections via a row of solder pads on the PCB
Backlight voltage; 5V and 9V
Backlight current; 50mA and 20mA
Functions as ammeter when used with a 200mV digital current shunt
