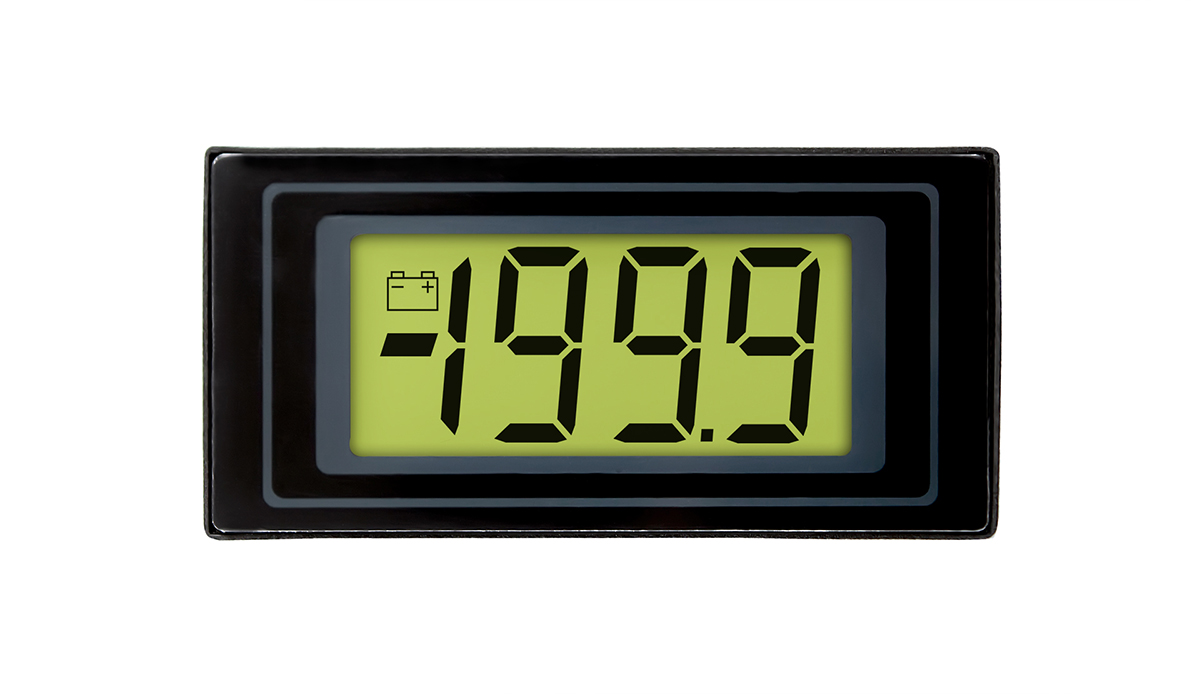

LCD Voltmeter with LED Backlighting
This compact panel meter features a 3 digit LCD a low-profile bezel for mounting an LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity this meter plugs straight into a single-in-line socket or can be panel mounted using the snap-in bezel and window supplied.
Features and Benefits:
12.5mm digit height
Logic selectable Decimal Points
Auto-zero
Auto-Polarity
200mV d.c. Full Scale Reading
LED Backlighting
Logic selectable Decimal Points
Auto-zero
Auto-Polarity
200mV d.c. Full Scale Reading
LED Backlighting
Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %
Manufacturer:
Lascar
Manufacturer Part No:
DPM 125-BL
Enrgtech Part No:
ET14016317
Warranty:
Manufacturer
£ 39.99
Checking for live stock
Current Type:
DC
Number of Digits:
3.5
Display Type:
LCD
Cutout Height:
22.2mm
Cutout Width:
45mm
Depth:
9mm
Supply Voltage:
7.5 → 14 V
Digit Height:
12.5 mm
Meter Accuracy:
±1 %
Analogue Effect:
Digits Only
Minimum Temperature:
0°C
Meter Type:
Voltmeter
