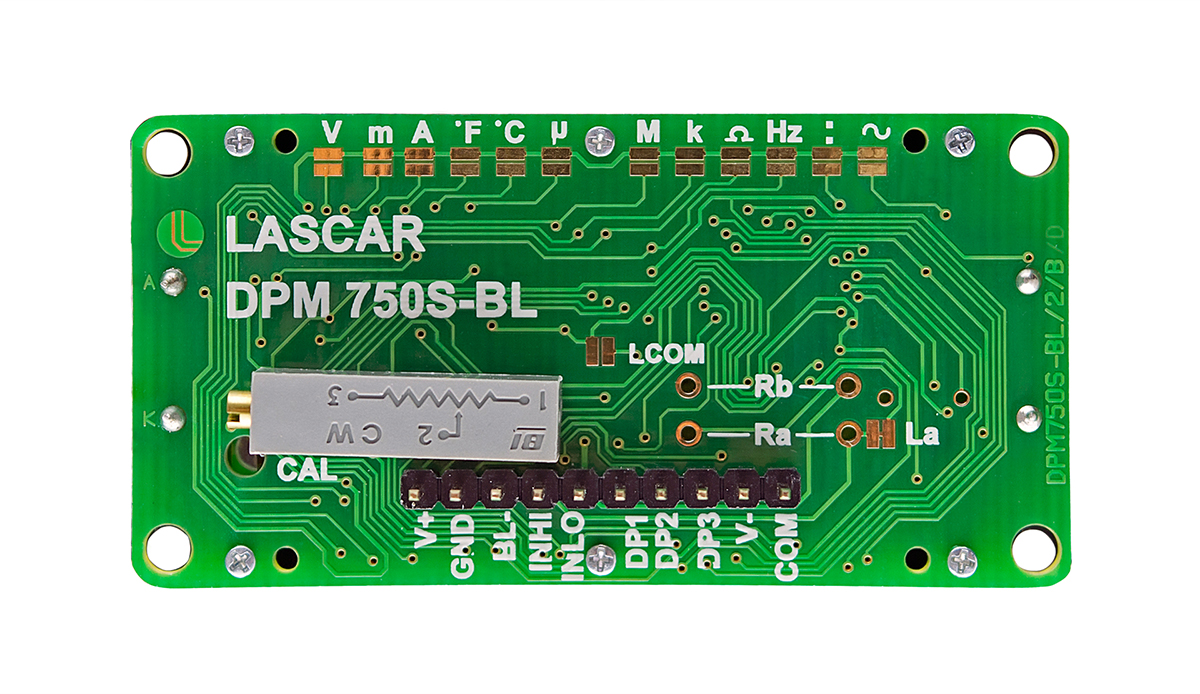

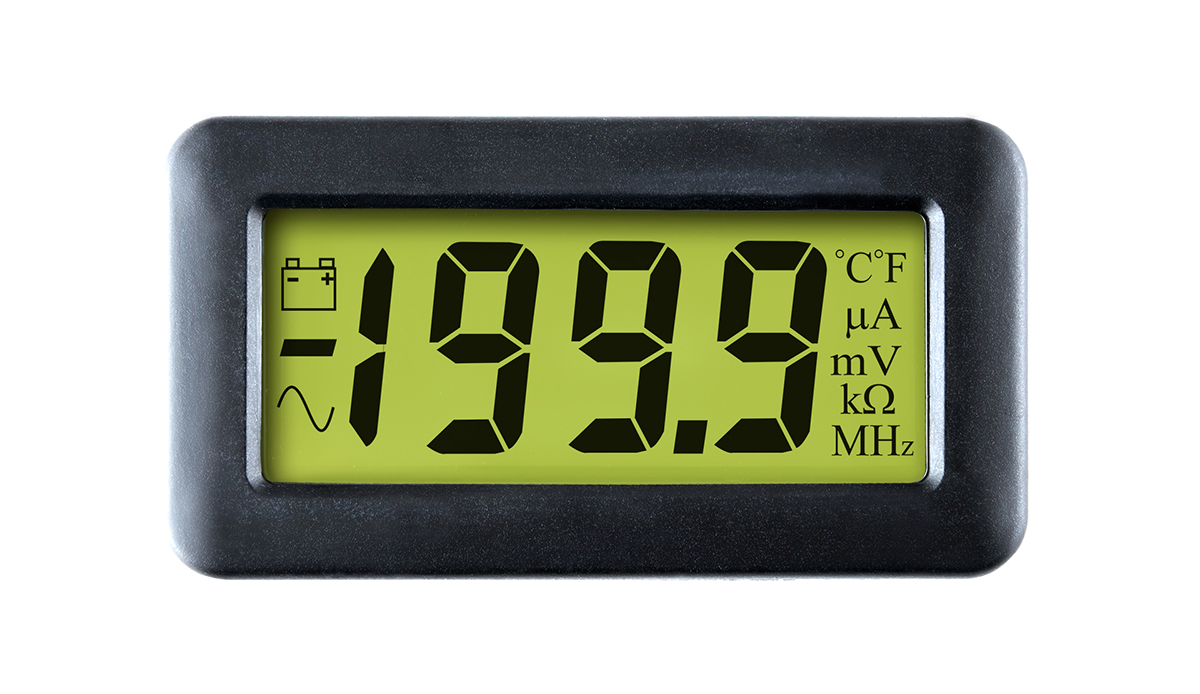

200mV LCD Voltmeter with Backlighting
The DPM 750S-BL panel meter is a 3 digit LCD with 12.7mm digit height, and a 200mV d.c. measurement range, auto-zero and auto-polarity. The device features a negative rail generator which enables the meter to measure a signal reference to its own power supply GND.
A low drift bandgap referenced circuit ensures accurate readings over a wide temperature range. The modules low-cost means that it is suitable for both high and low volume applications. The device is supplied with a plastic mounting bezel. A waterproof seal to IP67 / NEMA 4X is achievable, using the optional BEZ 700-IP bezel. Features and Benefits 12.7mm Digit Height
200mV d.c. Full Scale Reading
3.0 to 7.5V or 6.0 to 1.5 d.c. Operation
Auto-zero and Auto-polarity
Programmable Decimal Points
LED Backlighting (30mA @5V typ.)
Low Battery Warning
Bandgap Reference
A low drift bandgap referenced circuit ensures accurate readings over a wide temperature range. The modules low-cost means that it is suitable for both high and low volume applications. The device is supplied with a plastic mounting bezel. A waterproof seal to IP67 / NEMA 4X is achievable, using the optional BEZ 700-IP bezel. Features and Benefits 12.7mm Digit Height
200mV d.c. Full Scale Reading
3.0 to 7.5V or 6.0 to 1.5 d.c. Operation
Auto-zero and Auto-polarity
Programmable Decimal Points
LED Backlighting (30mA @5V typ.)
Low Battery Warning
Bandgap Reference
Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %
Manufacturer:
Lascar
Manufacturer Part No:
DPM 750S-BL
Enrgtech Part No:
ET14016321
Warranty:
Manufacturer
£ 33.99
Checking for live stock
Current Type:
DC
Number of Digits:
3.5
Display Type:
LCD
Cutout Height:
32mm
Cutout Width:
62mm
Depth:
9.5mm
Supply Voltage:
(V+ → V-) 6 → 15 V dc<BR/>(V+ → GND) 3 → 7.5 V dc
Digit Height:
12.7 mm
Meter Accuracy:
±1 %
Analogue Effect:
Digits Only
Minimum Temperature:
0°C
Meter Type:
Voltmeter
