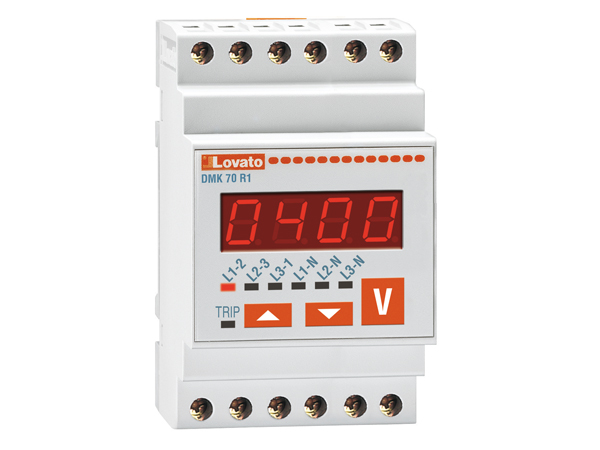

Three-Phase Digital Voltmeter
The modular digital metering instruments DMK70R1 for industrial and service fields warrant an extreme stability of the readouts owing to the large number of samplings.
The measures in TRMS provide for a correct operation of voltage with high harmonic content. The model are able to store and display maximum (HIGH) and minimum (LOW) values of the readouts. Three-phase voltmeter meter with a LED display
Voltage measurements in True RMS
Storing of minimum and maximum values
Programmable relay output (1 C/O)
Selection option for Automatic or Manual resetting
IP40 degree of protection on front
DIN rail mounting
The measures in TRMS provide for a correct operation of voltage with high harmonic content. The model are able to store and display maximum (HIGH) and minimum (LOW) values of the readouts. Three-phase voltmeter meter with a LED display
Voltage measurements in True RMS
Storing of minimum and maximum values
Programmable relay output (1 C/O)
Selection option for Automatic or Manual resetting
IP40 degree of protection on front
DIN rail mounting
DMK Series Digital Voltmeter AC, LED Display 4-Digits ±0.25 %
Manufacturer:
Lovato
Manufacturer Part No:
DMK70R1
Enrgtech Part No:
ET14059848
Warranty:
Manufacturer
£ 134.83
Checking for live stock
Current Type:
AC
Number of Digits:
4
Display Type:
LED
Cutout Height:
99mm
Cutout Width:
5mm
Depth:
63.1mm
Supply Voltage:
240 V
Meter Accuracy:
±0.25 %
Analogue Effect:
Digits Only
Minimum Temperature:
-20°C
Meter Type:
Voltmeter
Maximum Temperature:
+60°C
