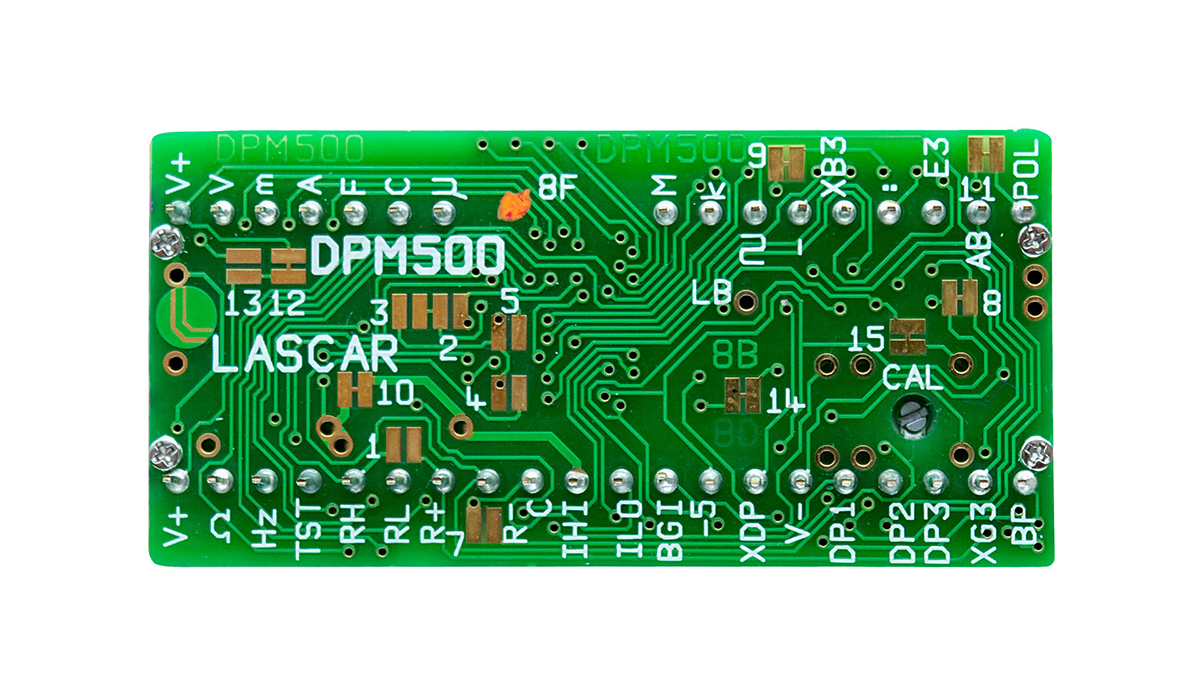

3 Digit LCD Voltmeter
Lascar's DPM 500 is a compact panel meter featuring a 3 digit LCD with 12.5mm digit height, annunciators and a low-profile bezel for mounting. The DPM 500 uses advanced components and construction techniques to provide a uniquely compact unit.
The meter is in a 40 pin DIL integrated circuit format that can be plugged directly into a DIL socket or panel mounted using the snap in bezel.
With a 200mV d.c. full scale reading, auto-zero and auto-polarity this meter plugs directly into a 40-way DIL socket or can. Features and Benefits 12.5mm Digit Height
Programmable Decimal Point
Auto-Zero
Auto-polarity
200mV d.c. Full scale reading
Annunciators
The meter is in a 40 pin DIL integrated circuit format that can be plugged directly into a DIL socket or panel mounted using the snap in bezel.
With a 200mV d.c. full scale reading, auto-zero and auto-polarity this meter plugs directly into a 40-way DIL socket or can. Features and Benefits 12.5mm Digit Height
Programmable Decimal Point
Auto-Zero
Auto-polarity
200mV d.c. Full scale reading
Annunciators
Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %
Manufacturer:
Lascar
Manufacturer Part No:
DPM 500
Enrgtech Part No:
ET14116820
Warranty:
Manufacturer
£ 37.99
Checking for live stock
Current Type:
DC
Number of Digits:
3.5
Display Type:
LCD
Cutout Height:
27mm
Cutout Width:
57mm
Depth:
8.2mm
Meter Accuracy:
±1 %
Analogue Effect:
Digits Only
Minimum Temperature:
0°C
Meter Type:
Voltmeter
Maximum Temperature:
+50°C
