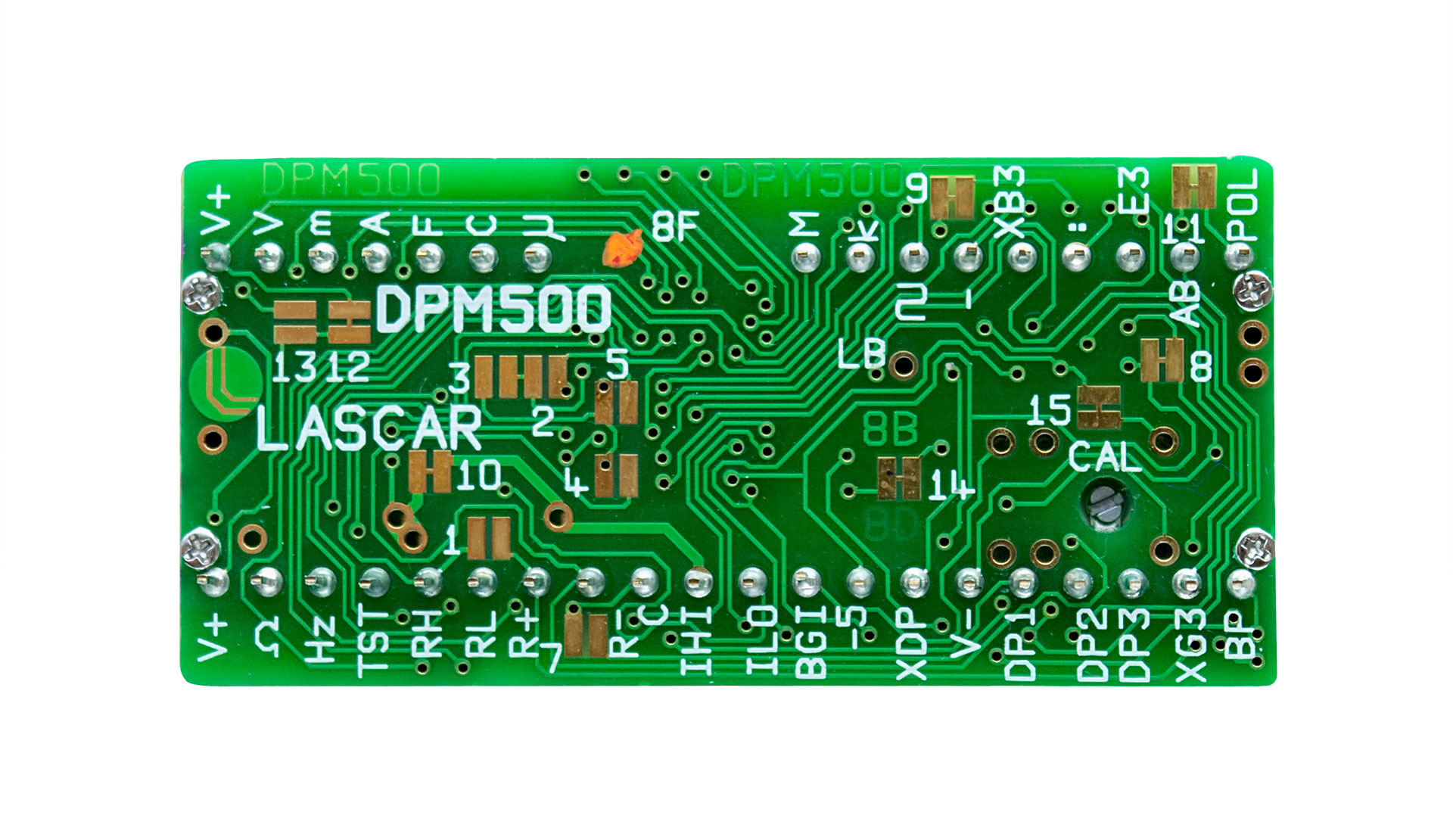

Lascar Digital Voltmeter The Lascar digital voltmeter uses advanced components and construction techniques to provide a uniquely compact unit. The meter has a 40-pin DIL integrated circuit format that can be plugged directly into a DIL socket or panel mounted using the snap-in bezel. For single rail use, the device features a built-in negative rail generator, enabling the meter to measure a signal referenced to its power supply 0V. Its full-scale reading is 200mVDC and supply voltage range between 7.5V and 14V. Features and Benefits Digit height is 12.5mm (0.5in)
Auto-zero
Auto-polarity
Programmable decimal points
Annunciators
Backlit single rail version
Number of digits are 3.5
Operating temperature ranging between 0°C and 50°C Certifications ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
