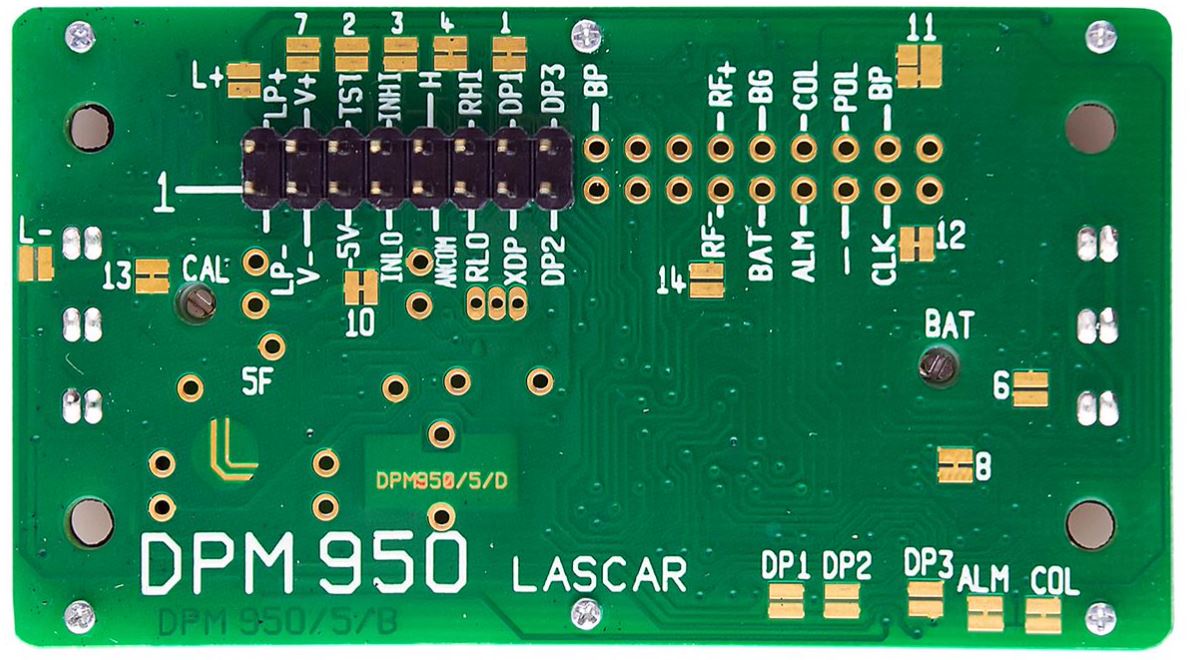

Large 200mV LCD Single Rail Voltmeter with LED Backlighting
Lascar's DPM 950S is a large panel meter featuring a 3 digit LCD with 19mm digit height and LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into a 16-way IDC socket and can be fitted into a panel via the bezel, window and clips provided.
Features and Benefits
19mm Digit Height
IDC Interface
Auto-zero
Auto Polarity
200mV d.c. Full Reading
LED backlight
Single Rail Version
Alarm Annunciator
IDC Interface
Auto-zero
Auto Polarity
200mV d.c. Full Reading
LED backlight
Single Rail Version
Alarm Annunciator
Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %
Manufacturer:
Lascar
Manufacturer Part No:
DPM 950S
Enrgtech Part No:
ET14116823
Warranty:
Manufacturer
£ 51.99
Checking for live stock
Current Type:
DC
Number of Digits:
3.5
Display Type:
LCD
Cutout Height:
40mm
Cutout Width:
72mm
Depth:
8.4mm
Supply Voltage:
3.5 → 6.5 V dc
Digit Height:
19 mm
Meter Accuracy:
±1 %
Analogue Effect:
Digits Only
Minimum Temperature:
0°C
Meter Type:
Voltmeter
