CUB4V LCD voltmeter, 3.5 digit, 200 V, 15 mm character height 3.5 digit, 15 mm bright display Automatic offset correction Freely selectable decimal point Free scaling via potentiometer Protection class IP65 Four input ranges: ±199.9 mVdc, ±1.999 Vdc, ±19.99 Vdc or ±199.9 Vdc (Ri = 1 MΩ) selectable using DIP switch. Protection: 199.9 mVdc, range: 75 Vdc. All other ranges: 300 Vdc Display capacity: Standard LCD or lit with a red or green background. Minus (-) and overrun displayed. Decimal point can be set using DIP switch Accuracy: ±(0.1 % + 1 digit) at 23 °C and 85% RH. Power supply: Standard LCD display: Max. 9 → 28 Vdc 4 mA Lit display: Max. 9 → 28 Vdc 50 mA Measuring rate: 2.5 measurements/s Stabilisation time: 1.5 s Housing: High-impact plastic housing. Dimensions (W x H x D): 75 x 39 x 50 mm Panel cut-out: according to DIN: 68 x 33 mm Mounted with mounting frame Connection: Screw connections Cross-reference to manufacturer's part number Stock no. Wachendorff part no. Description 388-5422 CUB4V000 Standard LCD 388-5450 CUB4V010 Green LCD 388-5472 CUB4V020 Red LCD Approvals UL, CSA LCD 5.5 to 19mm Digit Height All have an operating temperature range of 0 to 50°C unless specified otherwise.

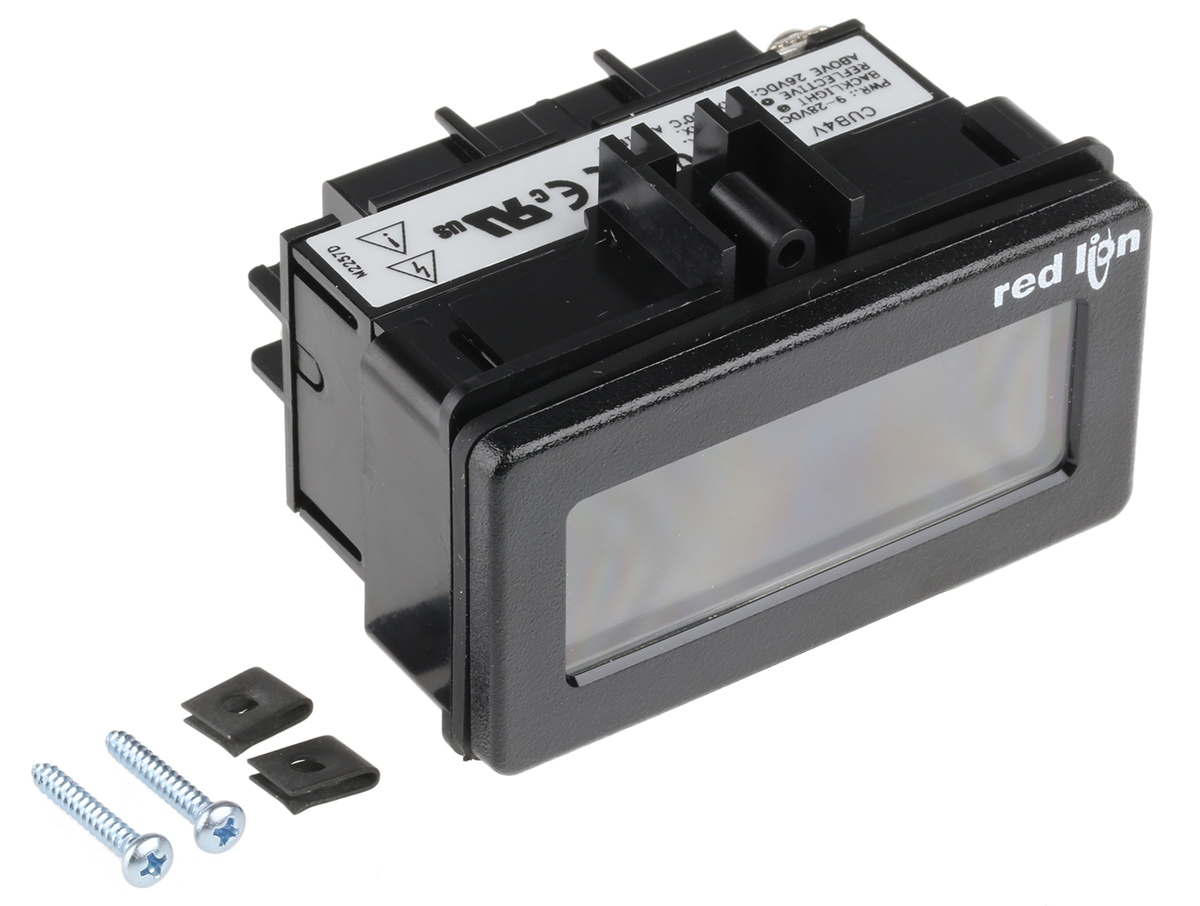

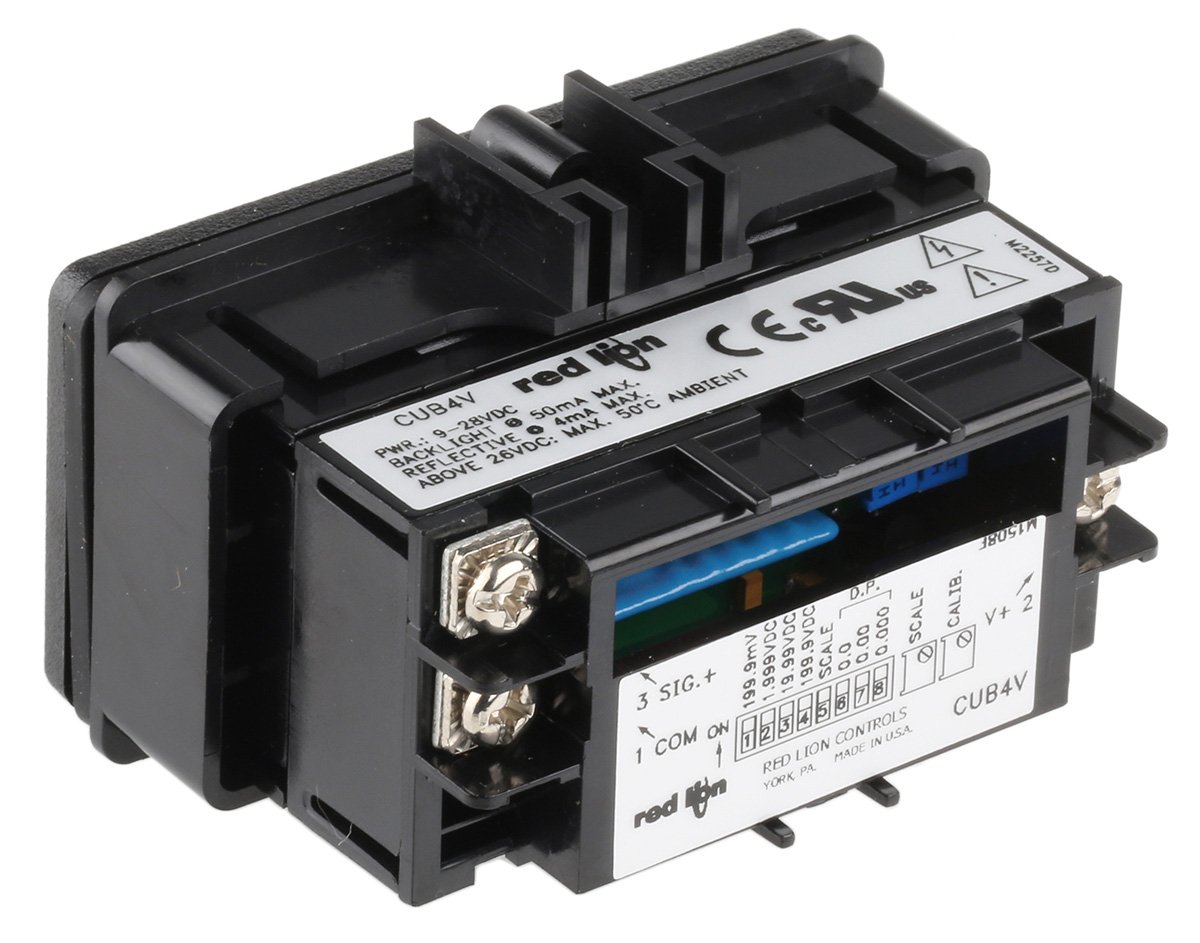

Red Lion Digital Voltmeter DC, LCD display 3.5-Digits ±0.1 %, 68 x 33 mm

Manufacturer:
Manufacturer Part No:
CUB4V010
Enrgtech Part No:
ET14123241
Warranty:
Manufacturer
£ 118.58
Checking for live stock
Display Type:
LCD
Meter Type:
Voltmeter
Cutout Width:
68mm
Minimum Temperature:
0°C
Meter Accuracy:
±0.1 %
Number of Digits:
3.5
Current Type:
DC
Depth:
49.8mm
Maximum Temperature:
+60°C
Cutout Height:
33mm
Analogue Effect:
Digits Only
pdf icon
Model CUB4V - Miniature DC Voltmeter Data Sheet(Technical Reference)
pdf icon
NOTICE – This product is not for general use by consumers(Technical Reference)
