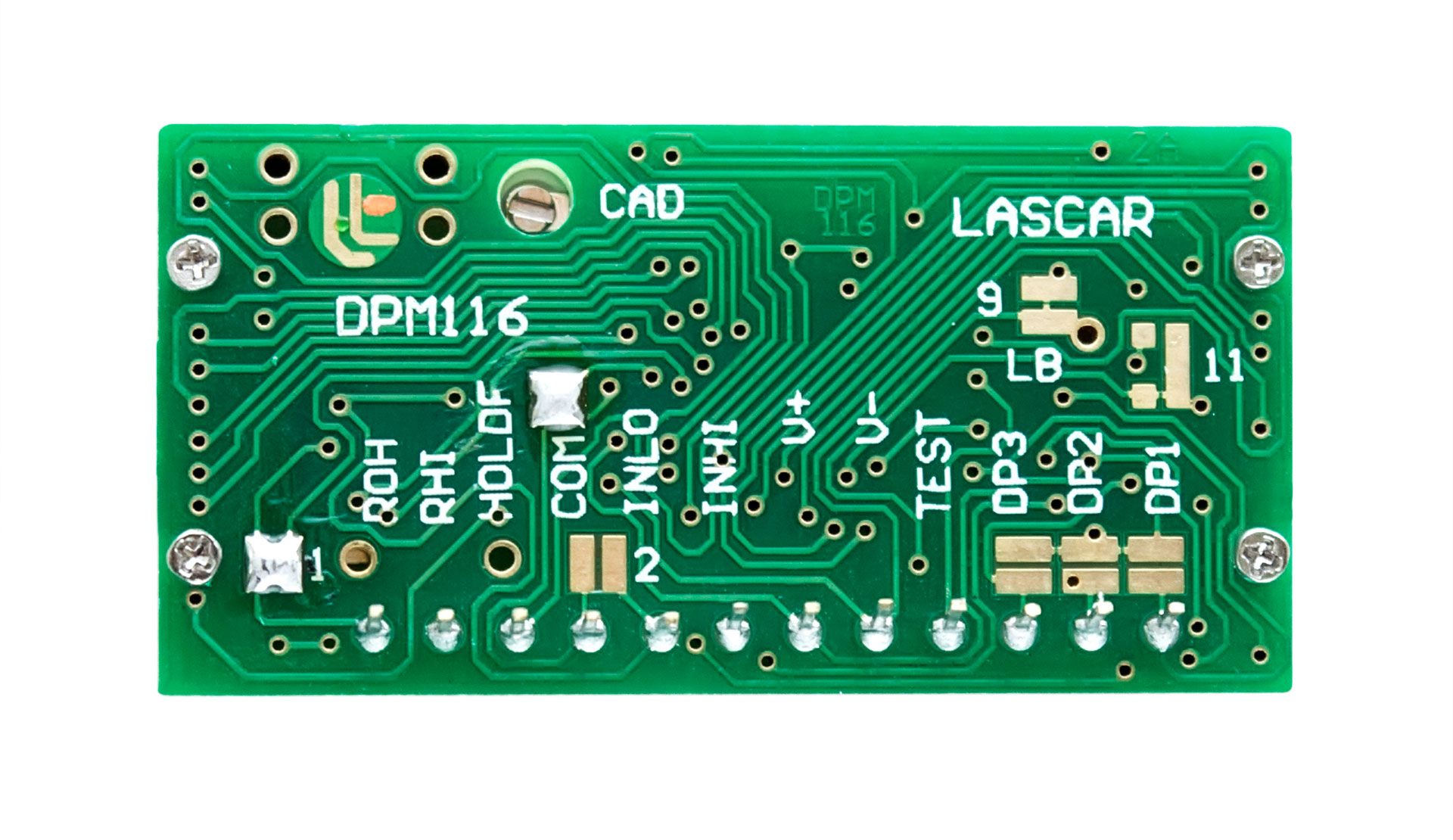

3 Digit LCD Voltmeter
The DPM 116 from Lascar Electronics is a compact LCD DPM ideally suited to low or high volume applications, it features an exceptionally large display in a miniature package.
With a 200mV d.c. full scale reading, digital hold, auto-zero and auto-polarity this meter plugs directly into a 12-way SIL socket or can be panel mounted using the snap-in bezel and window supplied. Features and Benefits: 12.5mm Digit Height
Logic selectable Decimal Points
Auto-zero
Auto-Polarity
200mV d.c. Full Scale Reading
Low Battery Indication
Digital Hold
With a 200mV d.c. full scale reading, digital hold, auto-zero and auto-polarity this meter plugs directly into a 12-way SIL socket or can be panel mounted using the snap-in bezel and window supplied. Features and Benefits: 12.5mm Digit Height
Logic selectable Decimal Points
Auto-zero
Auto-Polarity
200mV d.c. Full Scale Reading
Low Battery Indication
Digital Hold
Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %
Manufacturer:
Lascar
Manufacturer Part No:
DPM 116
Enrgtech Part No:
ET16803364
Warranty:
Manufacturer
£ 39.99
Checking for live stock
Current Type:
DC
Number of Digits:
3.5
Display Type:
LCD
Cutout Height:
22.2mm
Cutout Width:
45mm
Depth:
9mm
Supply Voltage:
7.5 → 14 V dc
Digit Height:
12.5 mm
Meter Accuracy:
±1 %
Analogue Effect:
Digits Only
Minimum Temperature:
0°C
Meter Type:
Voltmeter
