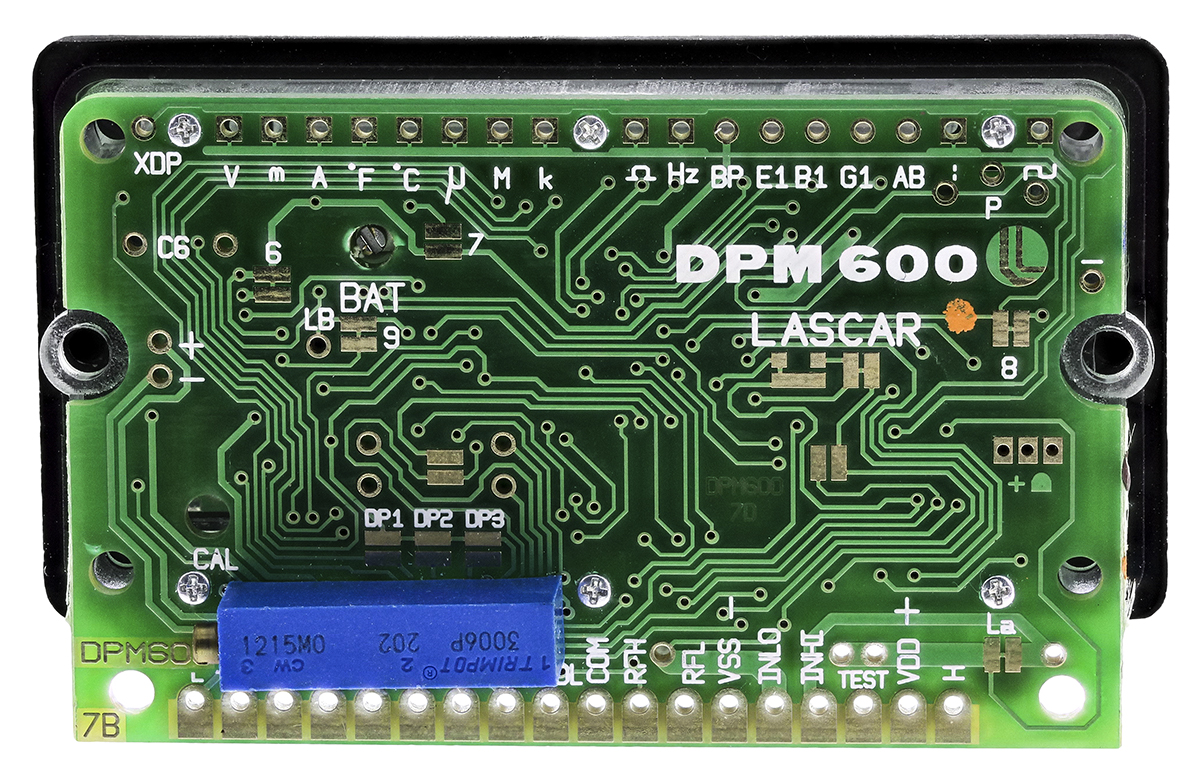

200mV LCD Voltmeter with Annunciators
The DPM 600 from Lascar is an ultra-low profile LCD meter using advanced components and construction techniques to provide an unrivalled combination of high performance, elegant appearance and low cost. The DPM 600 is pin for pin compatible with many existing DPMs. It's very low current consumption results in an extended battery life, making it especially suitable for portable equipment.
Features and Benefits
12.7mm Digit Height
Logic Selectable Decimal Points
Auto-zero
Auto-Polarity
200mV d.c. Full Scale Reading
User Adjustable Low Battery Indication
Logic Selectable Decimal Points
Auto-zero
Auto-Polarity
200mV d.c. Full Scale Reading
User Adjustable Low Battery Indication
Digital Voltmeter DC, LCD Display 3.5-Digits 0.1 %
Manufacturer:
Lascar
Manufacturer Part No:
DPM 600
Enrgtech Part No:
ET16803365
Warranty:
Manufacturer
£ 37.99
Checking for live stock
Current Type:
DC
Number of Digits:
3.5
Display Type:
LCD
Cutout Height:
32mm
Cutout Width:
62mm
Supply Voltage:
5 → 14 V dc
Digit Height:
12.7 mm
Meter Accuracy:
0.1 %
Analogue Effect:
Digits Only
Minimum Temperature:
0°C
Meter Type:
Voltmeter
Maximum Temperature:
+50°C
