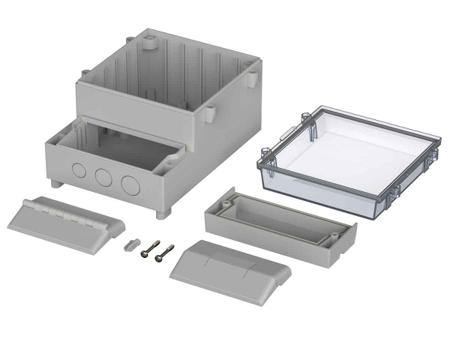

IP65 - Wall Mount - RegloCard-Plus Shock-resistant Hinged transparent door Slots for vertical PCB mounting and posts for horizontal mounting Recessed front to accept membrane keypad Flame Resistance; UL 94 HB/1.6 Note The aluminium front panels are designed to mount inside the plastic enclosures and do not replace the plastic hinged front. ABS Enclosures All have a flammability rating of UL94-HB.

Bopla , RegloCard-Plus IP65 Wall Box, Polystyrene, Grey, 186 x 131 x 103mm

Manufacturer:
Manufacturer Part No:
41130109
Enrgtech Part No:
ET13984984
Warranty:
Manufacturer
£ 50.27
Checking for live stock
External Mounting Type:
Wall-Mounting Holes
IP Rating:
IP65
Series:
RegloCard-Plus
Colour:
Light Grey
Gland Plate:
No
Chassis Plate:
No
External Depth:
103mm
Body Material:
ABS, Polycarbonate
Internal Mounting Type:
PCB Guide, PCB Mounting Studs
Transparent Door:
Yes
External Height:
131 mm
Fixing Kit:
No
External Width:
186 mm
pdf icon
Datasheet(Technical Reference)
pdf icon
Wall Mount Box Drawing(Technical Reference)
pdf icon
41130109 Line Drawing(Technical Reference)
