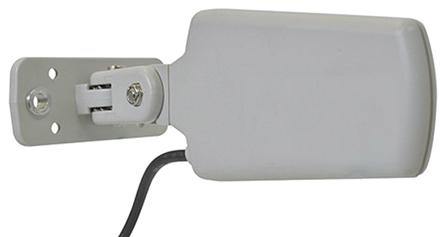

Antenna - Yagi Mobile Mark YAG8 Series directional antenna provides 8 dBi gains operating in the 2.4 GHz and 5 GHz frequency bands. This Yagi dual band Antenna is designed for WiFi hot spots and mesh networks. The IP rating means they are intended for outdoor use and Point to point and point to multipoint applications. YAG8-W-3C-WHT-12 can extend a network coverage in areas where cover is not good like a corridor in a building.
Easy to use: Wall mounts or pipe installation
Mounting bracket allows 45o vertical and horizontal adjustment
VSWR: 2:1 max over range
Radome colour: white (ASA material)
Radome Size: H x L x W 70 mm x 161 mm x 140 mm
Size with mount: H x L x W 70 mm x 191 mm x 140 mm
Weight: 0.23 kg
YAG8-W-3C-WHT-12: Connector - SMA Plug
