Pin Housing
TE Connectivity brings you a range of sturdy and easy to handle 'AMPMODU MOD II' female connector housings. These housings are made from a strong LCP (Liquid Crystal Polymer) material and come with a mating lock. The housings are designed to mate with PCB and cable mounted receptacles.
Features and benefits:
• Made from a strong and sturdy 'LCP' material
• -20°C to +105°C operating temperatures
• Fully polarised housings
• Accepts male contacts
• 2.54mm Pitch Applications: • PCB Mating
• Cable mounted receptacles Suitable male contacts: 509-2183
• -20°C to +105°C operating temperatures
• Fully polarised housings
• Accepts male contacts
• 2.54mm Pitch Applications: • PCB Mating
• Cable mounted receptacles Suitable male contacts: 509-2183

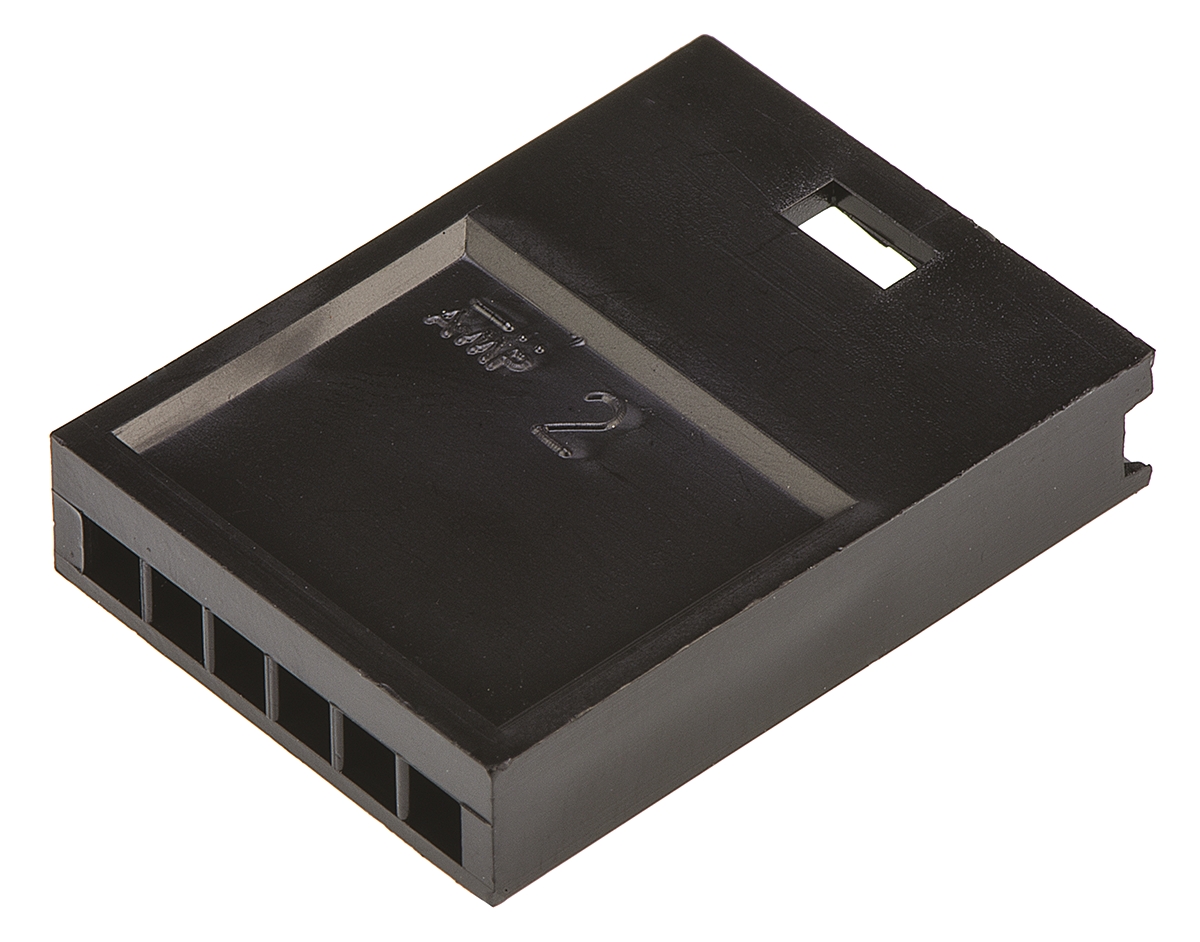

, AMPMODU MOD II Female Connector Housing, 2.54mm Pitch, 6 Way, 1 Row
Manufacturer:
TE Connectivity
Manufacturer Part No:
280630
Enrgtech Part No:
ET13818345
Warranty:
Manufacturer
£ 1.14
Checking for live stock
Number of Contacts:
6
Number of Rows:
1
Pitch:
2.54mm
Gender:
Female
Series:
AMPMODU MOD II
For Use With:
Single Row Snap-In Connector
Body Orientation:
Straight
Length:
17.5mm
Width:
5mm
Housing Material:
Thermoplastic
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=100336&DisplayLogo=False
