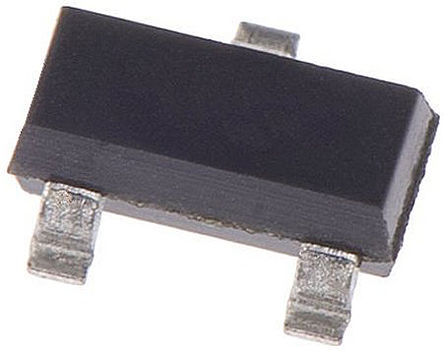

, 9.1V Zener Diode ±5% 250 mW SMT 3-Pin SOT-23

Diode Configuration:

Single

Nominal Zener Voltage:

9.1V

Number of Elements per Chip:

1

Mounting Type:

Surface Mount

Maximum Power Dissipation:

250 mW

Package Type:

SOT-23

Zener Type:

Voltage Regulator

Zener Voltage Tolerance:

±5%

Pin Count:

3

Test Current:

5mA

Maximum Zener Impedance:

100 Ω @ 1 mA

Maximum Reverse Leakage Current:

500nA

Dimensions:

3 x 1.4 x 1.1mm

Minimum Operating Temperature:

-65 °C

Forward Voltage:

0.9V

Automotive Standard:

AEC-Q101

Typical Voltage Temperature Coefficient:

5.5mV/K

Forward Current:

200mA

Maximum Operating Temperature:

+150 °C
