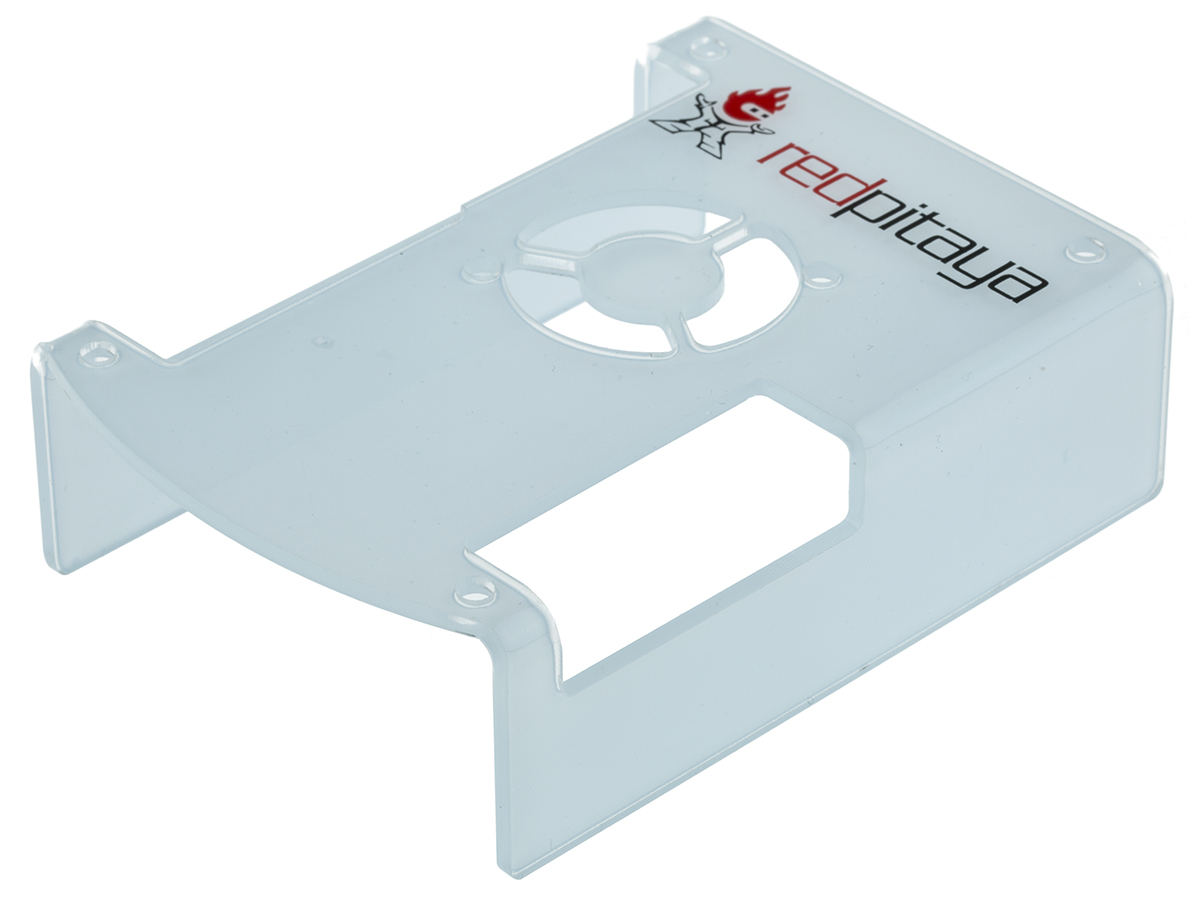

<B>Acrylic Case for Red Pitaya STEMlab</B> Dust, grime, mechanical stress and over-heating can easily cause extremely costly damage and even end an Oscilloscope hardware's life. Red Pitaya's acrylic cases are the ideal and most convenient accessories for protection. Designed in a way that allows a fan to be mounted on top of it, giving additional cooling to the system. The left hand side features all the important holes for connectors, whilst the durable acrylic case offers additional protection for busy environments, or to protect your STEMlab when carrying it from one location to another. <B>Features and Benefits:</B> • Hard acrylic exterior<BR/>• Pre-cut connector openings<BR/>• Fan mounting design <B>Oscilloscope portability and protection</B> RS offers a wide range of carrying bags and protective hard and soft case items. Protection for Oscilloscopes, hardware and analyzers can be vital in busy environments and we understand the need to prolong life and protect, reducing repair costs.

Shielding Aluminium Case for Red Pitaya STEMLab The ALU case is the best option to protect your Red Pitaya STEMlab. Strong aluminium construction protects your board very well against mechanical, environmental, and electromagnetic (EMI) effects. On the left-hand side of the ALU case you will find all the important holes for connectors.

<B>Logic Analyser Basic for Red Pitaya STEMLab</B> Brought to you by Red Pitaya, this Logic Analyzer Basic application enables the representation of the binary states of digital signals. The Logic Analyzer can both deal with purely binary signals, such as GPIO outputs of the Raspberry Pi or Arduino board, as well as analyze different bus (I2C, SPI, and UART) and decode the transmitted data. All Red Pitaya applications are web-based and do not require the installation of any native software. Users can access them via a web browser using their smartphone, tablet or a PC running any popular operating system (MAC, Linux, Windows, Android, and iOS). All models are highly reliable and excellent quality. <B>Features and Benefits</B> • Smartphone and PC Capability<BR/>• Excellent for binary signals<BR/>• Web based software (no installation needed) <B>Graphical user interface</B> The graphical user interface of the Logic Analyzer Basic fits well into the overall design of the Red Pitaya applications providing the same operating concept. <B>What is data acquisition?</B> Data acquisition is an activity which samples signals, measuring physical conditions. With this unit, the results are then converted into digital values. Data is then logged on a USB or another type of storage device for the comparison of results. To explain it in its simplest terms, measuring the temperature of the concrete outside during summer with a simple device, would be classed as data acquisition.

Diagnostic Accessories Kit for Red Pitaya STEMLab Red Pitaya diagnostic accessories kit consisting of the following:<BR/>2 x osciloscope probes<BR/>2 x SMA to BCN adapters<BR/>2 x 50 ohm terminations<BR/>2 x SMA T adapters<BR/>WIFI dongle

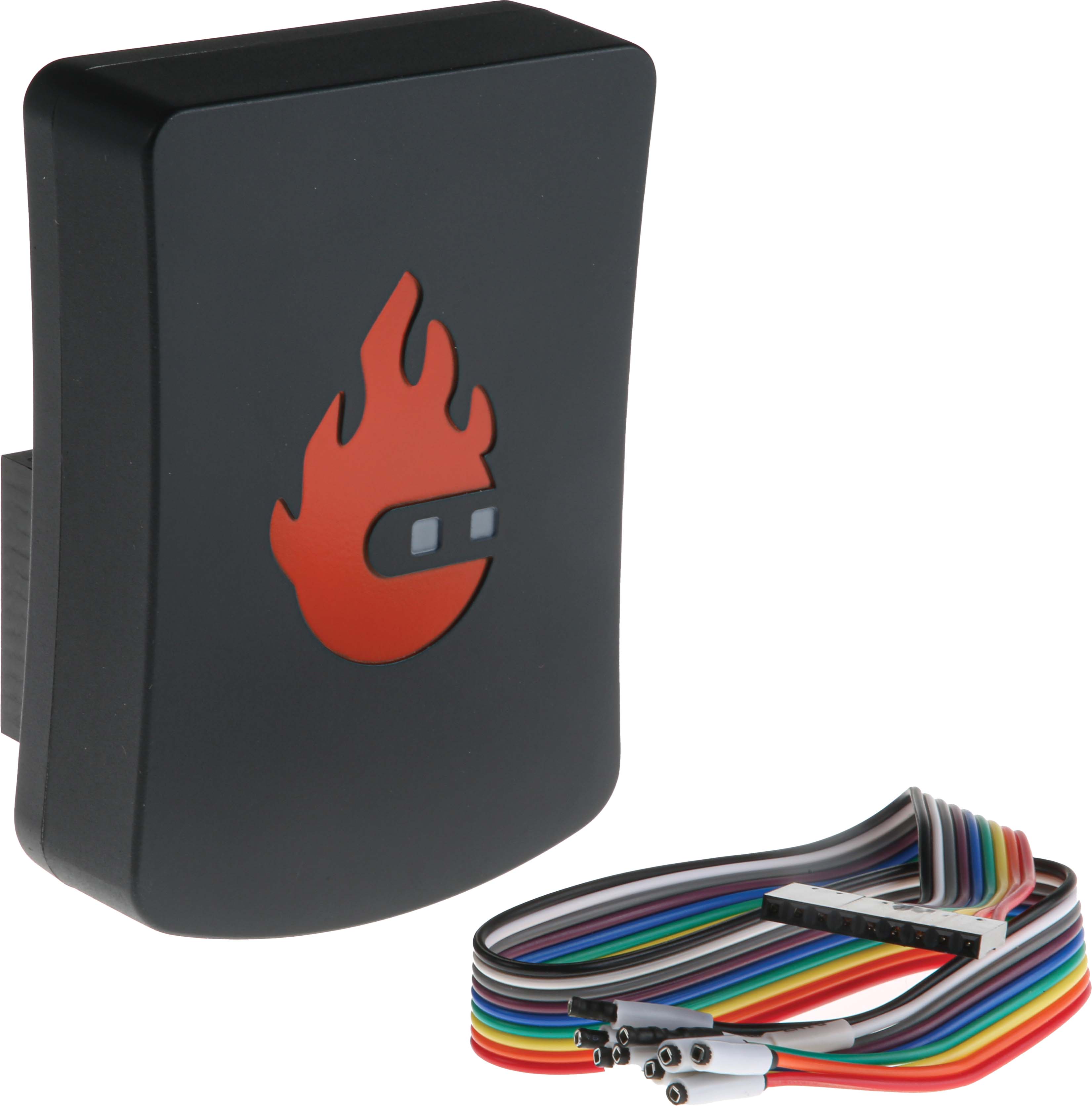

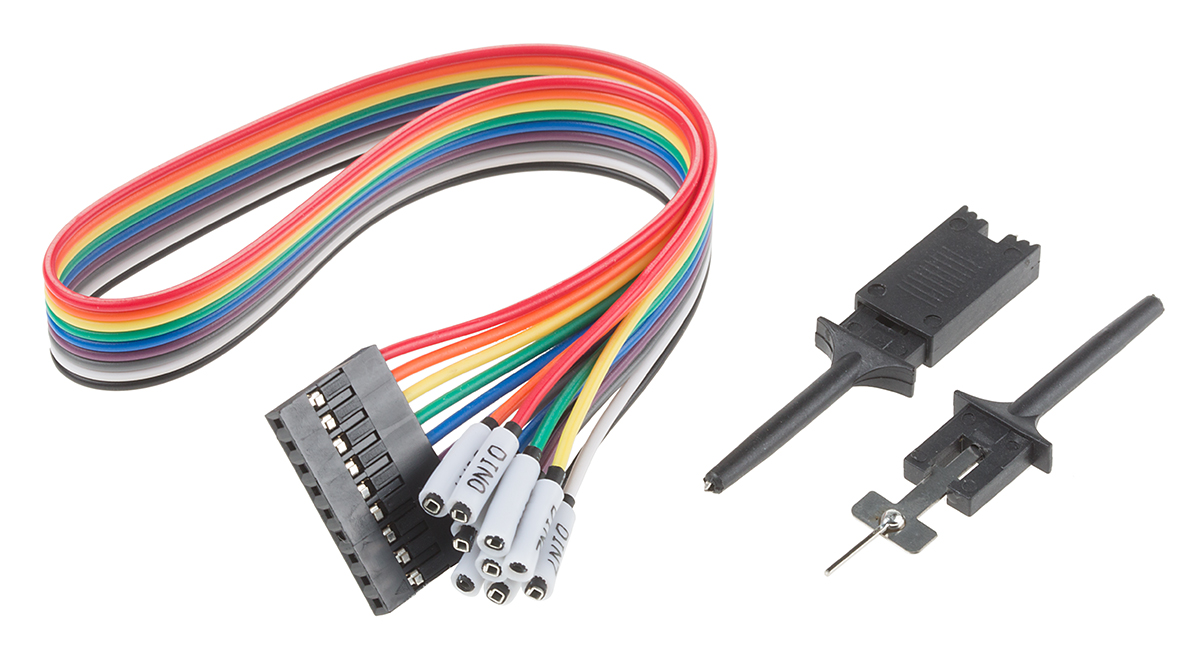

<B>Logic Analyser PRO for Red Pitaya STEMLab</B> Brought to you by Keysight Technologies. This application enables the representation of the binary states of digital signals. The Logic Analyzer can both deal with purely binary signals, such as GPIO outputs of the Raspberry Pi or Arduino board, as well as analyze different bus (I2C, SPI, and UART) and decode the transmitted data. All Red Pitaya applications are web-based and do not require the installation of any native software. Users can access them via a web browser using their smartphone, tablet or a PC running any popular operating system (MAC, Linux, Windows, Android, and iOS). All models are highly reliable and excellent quality. <B>Features and Benefits</B> • Logic Analyser Pro turns your STEMlab board into an 8 channel logic analyser<BR/>• enables the representation of the binary states of digital signals<BR/>• Smartphone and PC accessibility <B>Graphical User Interface Features</B> The graphical user interface of the Logic Analyzer Pro fits well into the overall design of the Red Pitaya applications providing the same operating concept. <B>What is data acquisition?</B> Data acquisition is an activity which samples signals, measuring physical conditions. With this unit, the results are then converted into digital values. Data is then logged on a USB or another type of storage device for the comparison of results. To explain it in its simplest terms, measuring the temperature of the concrete outside during summer with a simple device, would be classed as data acquisition.

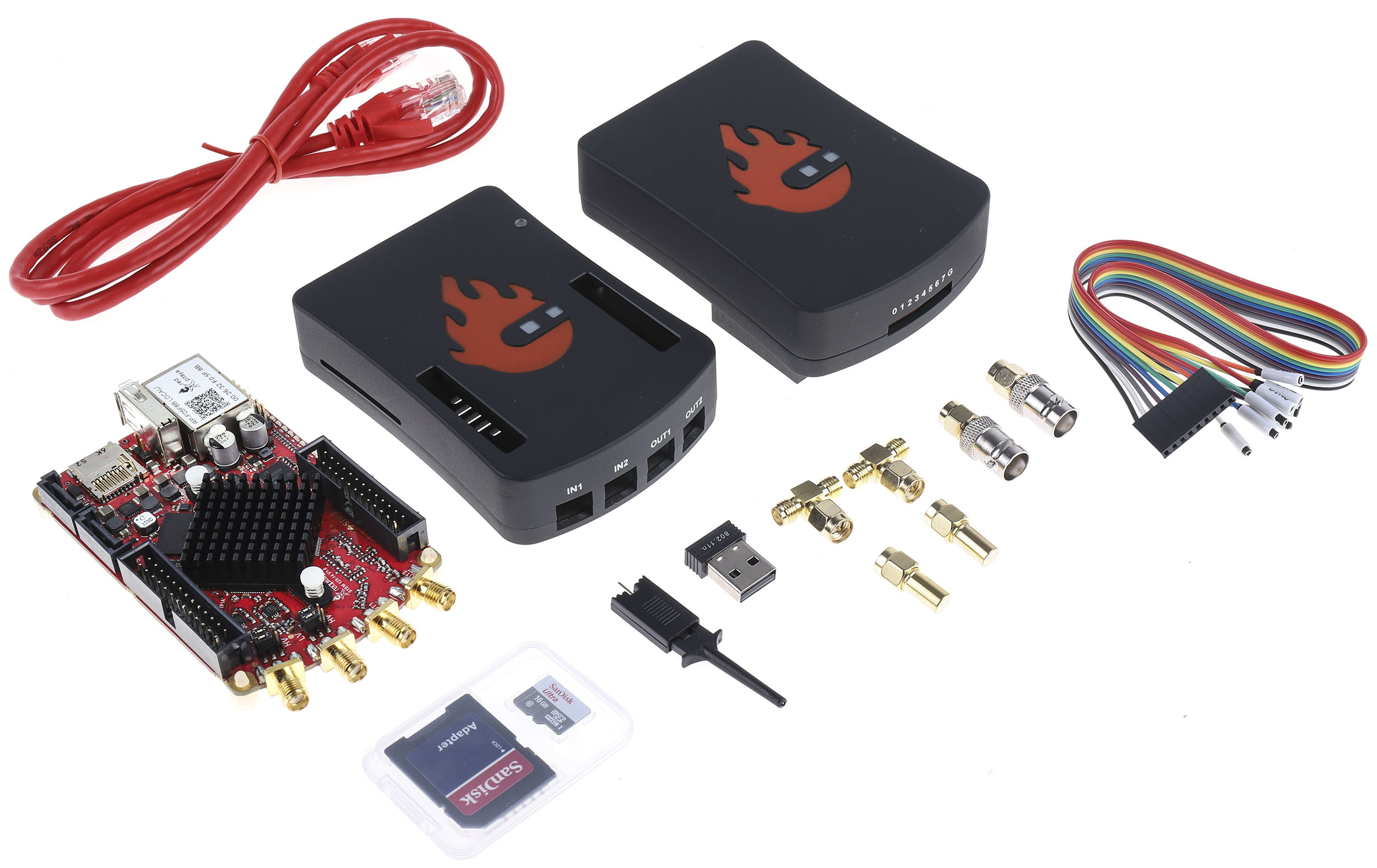

Red Pitaya PC Based Oscilloscope Calibrated Diagnostic Kit The Red Pitaya STEMLab 125-14 PC based 40MHz oscilloscope calibrated diagnostic kit consists of various Red Pitaya hardware. It has 2 analogue channels and 14bit input/output channels for highly accurate measurement results in a professional environment. It consists of test and measurement Instruments like the Oscilloscope signal generator, spectrum analyser, and bode analyser. Access to the Red Pitaya marketplace which is a place where free of charge open-source applications developed by red Pitaya community members are available within a single click for immediate experience and use.<BR/>Development and learning tools feature MATLAB/LABVIEW remote control possibility to create own app (open source code available<BR/>Supplied with <BR/>1 x STEMlab 125-14 board- calibrated<BR/>1 x 2A, 5VDC Interchangeable power supply<BR/>1 x 4GB, class 10 SD card<BR/>1 x 1m ETH cable<BR/>2 x Oscilloscope probes<BR/>2 x SMA to BNC adapters<BR/>2 x 50ohm termination<BR/>2 x T part<BR/>1 x Logic analyser pro licence key<BR/>1 X Logic analyser HW in ALU case,<BR/>1 x Wi-Fi USB module<BR/>1 x Aluminium case for STEMlab board Features and Benefits Available RAM of 512MB(4GB)<BR/>Power Consumption up to 5V, 2A max <BR/>Sample random rate is 125MSa/s <BR/>The bandwidth of oscilloscope is 40MHz Applications Audio and video recording equipment<BR/>Designing<BR/>Research & Development<BR/>Testing in manufacturing<BR/>Testing of signals voltage in radio broadcasting equipment<BR/>Testing signal voltage in-circuit debugging Certifications CE compliant<BR/>FCC compliant

Red Pitaya STEMLab125-14 Diagnostic Kit The STEMLab 125-14 Diagnostic kit consists of the following Red Pitaya hardware and functionality, all ready to go: Test & Measurement Instruments Oscilloscope Signal generator Spectrum analyser Bode analyser Logic analyser basic Access to the Red Pitaya marketplace which is a place where free of charge open source applications developed by red Pitaya community members are available within a single click for immediate experience and use Development & Learning Tools / Features MATLAB / LABVIEW remote control Possibility to create own app (open source code available) Accessories SD card Power supply Ethernet cable 2 x oscilloscope probes 2 x SMA to BNC adapters 2 x 50 ohm termination 2 x SMA T adapters Wi-Fi dongle Other Compliance, CE, FCC Red Pitaya Hardware Red Pitaya STEMLab 14 board Connectivity (ethernet, Wi-Fi)

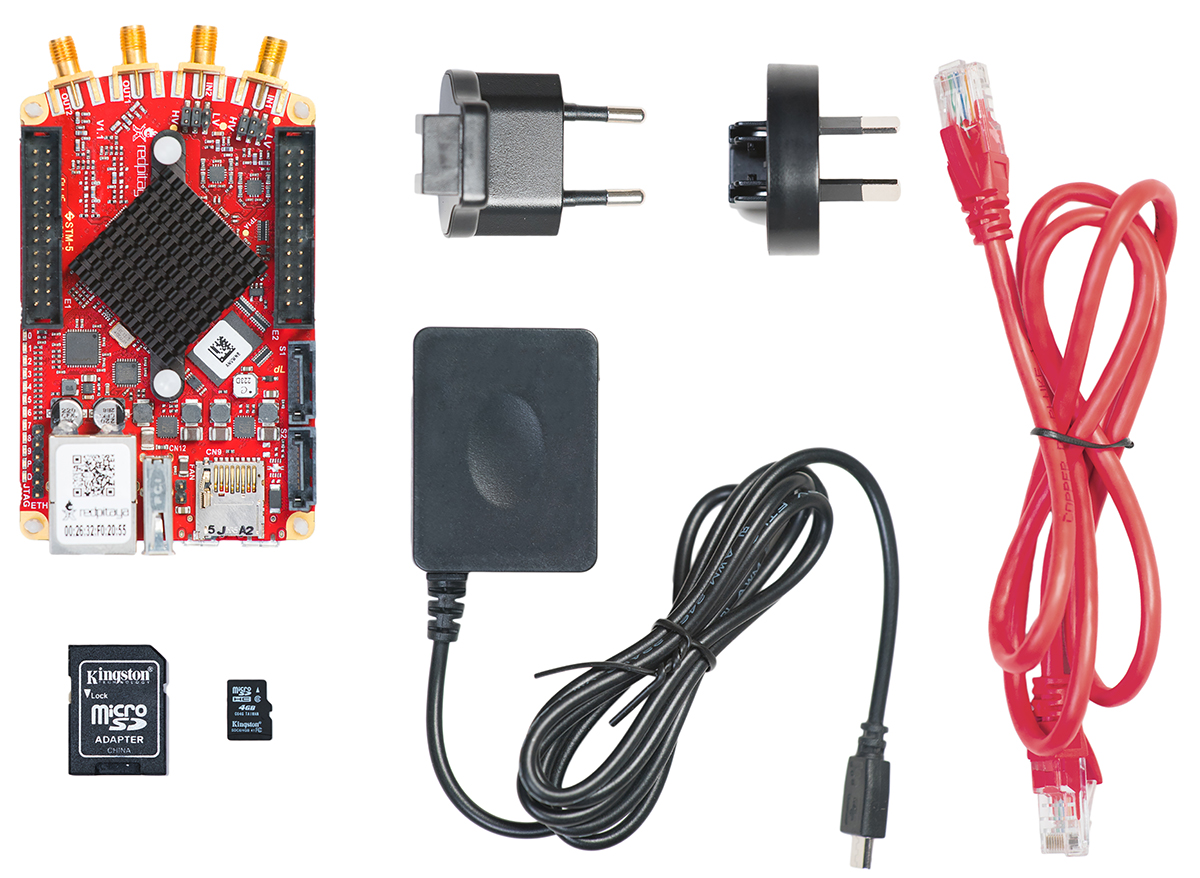

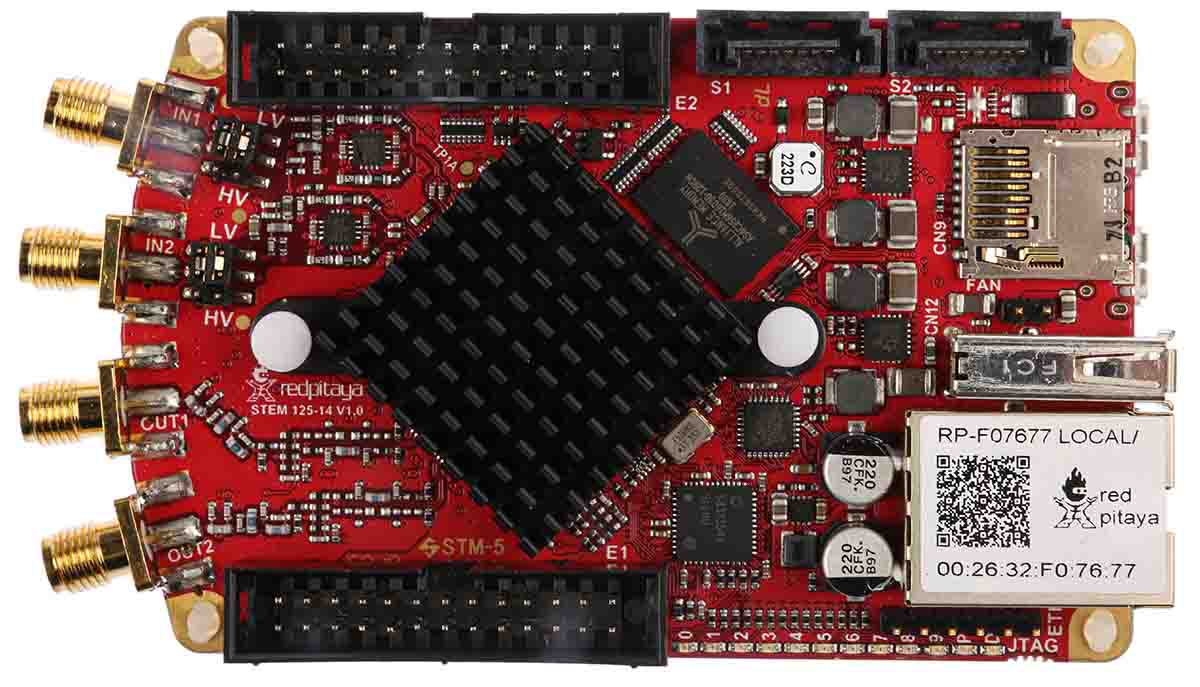

Red Pitaya PC Based Oscilloscope Starter Kit The Red Pitaya STEMLab 125-14 PC based 40MHz oscilloscope starter kit consists of various Red Pitaya hardware. It has 2 analogue channels and 14bit input/output channels for highly accurate measurement results in a professional environment. It consists of test and measurement Instruments like the oscilloscope signal generator, spectrum analyser, and Bode analyser. Access to the Red Pitaya marketplace which is a place where free of charge open-source applications developed by red Pitaya community members are available within a single click for immediate experience and use.<BR/>Development and learning tools feature MATLAB/LABVIEW remote control possibility to create own app (open source code available.<BR/>Supplied with <BR/>1 x STEMlab 125-14 board<BR/>1 x 2A, 5VDC Interchangeable power Supply<BR/>1 x 4GB, class 10 SD card<BR/>1 x 1m ETH cable Features and Benefits Available RAM of 512MB(4GB)<BR/>Sample random rate is 125MSa/s <BR/>The bandwidth of oscilloscope is 40MHz Applications Audio and video recording equipment<BR/>Designing<BR/>Research & Development<BR/>Testing in manufacturing<BR/>Testing of signals voltage in radio broadcasting equipment<BR/>Testing signal voltage in-circuit debugging Certifications CE compliant<BR/>FCC compliant
