DEBIX Model A is a powerful and reliable industrial single-board computer based on a quad-core i.MX 8M Plus processor with a wide temperature range from -40 to +105, perfect for extreme weather conditions. Launched by OKdo Technology and Polyhex Technology, this new-to-market DEBIX Model A board is ideal for various industrial applications, IoT, multimedia, smart cities, and more. The board comes with real-time control, 2.3TOPS NPU, rich I/O ports and a complete software development environment. Key benefits of DEBIX Model A Powerful Quad-core i.MX 8M Plus processor Integrated neural processing unit (NPU) that delivers up to 2.3 TOPS Perfect for industry 4.0, IoTs, smart cities and multimedia applications Wide CPU temperature range of -40℃ to 105℃ Works stably in extreme environments Flexible use with I/O and LoRa add-on boards Video encoding & decoding capabilities Capable of performing sophisticated processing tasks due to its quad-core ARM Cortex-A53 CPU up to 1.8GHz and 2GB/4GB/6GB LPDDR4. Key applications Machine Learning Industrial Automation Smart Home Smart Building Smart City Multimedia Consumer & Pro Audio/Voice Systems Technical Specifications CPU: NXP i.MX 8M Plus (default), 4 x Cortex-A53, integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial grade CPU runs at 1.6GHz, and commercial grade CPU runs at up to 1.8GHz. (i.MX 8M Plus series CPU optional) Gigabit network, 2.4GHz & 5GHz Wi-Fi, Bluetooth 5.0, high-speed USB 3.0 and PCIe support connection Video: 1080p60 video encode and decode (including H.265, H.264), 3D/2D graphic acceleration, and multiple audio and voice functionalities Memory: 2GB LPDDR4 (4GB/6GB optional) Storage: (default) micro-SD card (Onboard 8GB/16GB/32GB/64GB/128GB eMMC optional) Operating System: Android 11, Yocto, Ubuntu Power: DC 5V/3A Type-C power supply Dimensions: 85.0 x 56.0mm Operating Temperature: -40℃ to 105℃ CPU temperature

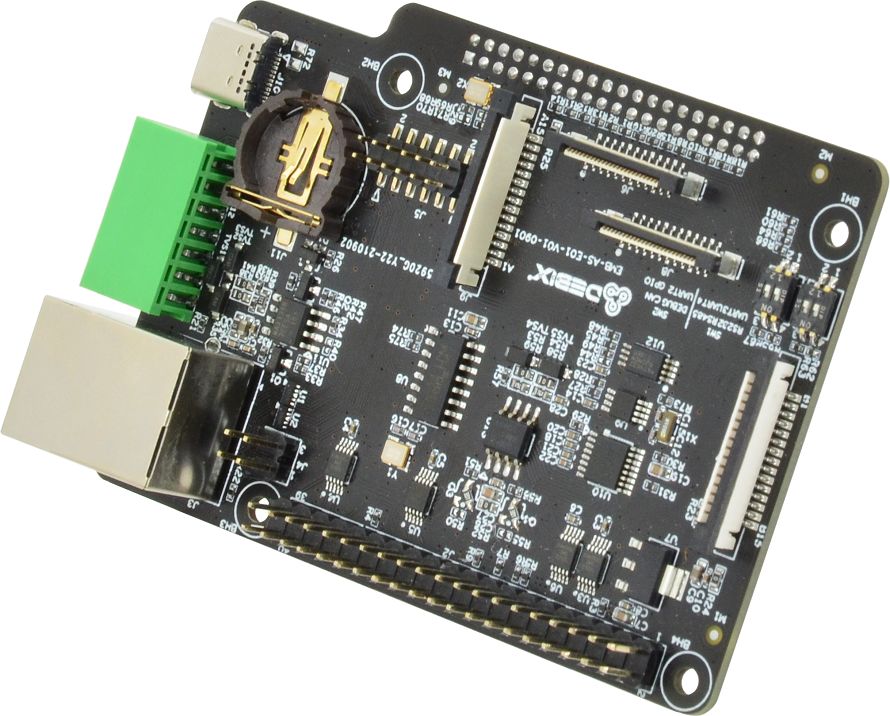

Introducing the DEBIX I/O Board, an innovative add-on board tailor-made for use with DEBIX Model A, DEBIX Model B, and DEBIX Model SE Single Board Computers (SBC). This board extends your DEBIX SBC capabilities by adding an RJ45 Gigabit network interface and Power over Ethernet (PoE) functionality to enhance connectivity. Equipped with RS232, RS485, and CAN Transceivers, the DEBIX I/O Board facilitates seamless integration with a diverse range of industrial equipment, unlocking unlimited possibilities for tech applications. Key Benefits of the DEBIX I/O Board Enhanced Connectivity: Expand the connectivity of your DEBIX Model A, DEBIX Model B, and DEBIX Model SE SBCs with an additional RJ45 Gigabit network interface and integrated PoE capability. This ensures robust and high-speed data transfer for your tech projects. Versatile Industrial Connectivity: Featuring RS232, RS485, and CAN Transceivers, the DEBIX I/O Board enables seamless connection with a wide array of industrial equipment. This versatility broadens the scope of applications, allowing for integration with diverse industrial systems. Unlimited Expansion Possibilities: With its robust expansion capabilities, the DEBIX I/O Board opens the door to unlimited possibilities for your tech projects. Empowering users to tailor their solutions based on evolving project requirements. Compatibility It’s fully compatible with DEBIX Model A, DEBIX Model B, and DEBIX Model SE, ensuring a seamless integration process into existing tech configurations.

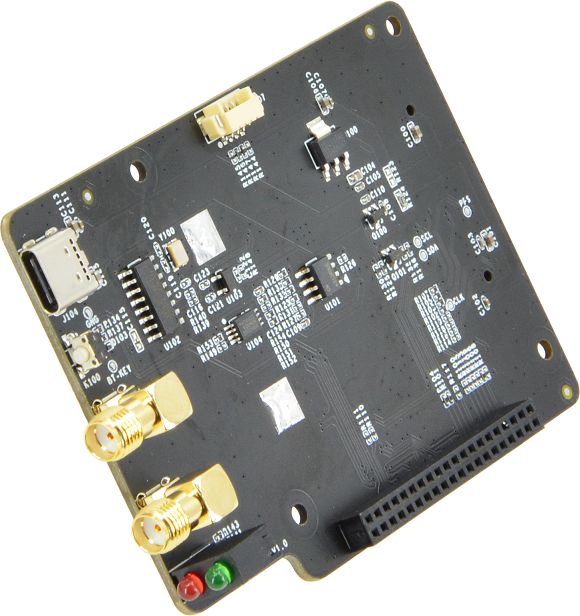

Introducing the DEBIX LoRa Board, an add-on board for DEBIX Model A, DEBIX Model B, and DEBIX Model SE Single Board Computers (SBC). This board introduces a Mini PCIe interface for LoRa Modules, unlocking the power of long-range transmissions with minimal power consumption. Equipped with a LoRa Antenna Connector, Wi-Fi Antenna Connector, and Bluetooth Pairing Button, the DEBIX LoRa Board provides a comprehensive solution for wireless communication needs. Key Benefits of the DEBIX LoRa Board Long-Range, Low-Power Transmissions: Harness the capabilities of LoRa technology for extended-range transmissions with minimal power consumption. Ideal for tech applications requiring efficient and reliable wireless connectivity over extended distances. Versatile Connectivity: The DEBIX LoRa Board features a LoRa Antenna Connector, providing a dedicated interface for optimised LoRa module connectivity. Additionally, it includes a Wi-Fi antenna connector, offering flexibility for dual-mode wireless communication. Bluetooth Pairing Convenience: Streamline the Bluetooth pairing process with the onboard Bluetooth Pairing Button. This feature simplifies the setup and connection process, ensuring efficient integration into a variety of tech applications. Compatibility It’s fully compatible with DEBIX Model A, DEBIX Model B, and DEBIX Model SE, ensuring a seamless integration process into existing tech configurations.

The Polyhex Technology Company Limited designed this DEBIX Fanless Aluminium case specifically for DEBIX Model A and Model B. Due to its small form-factor design, it has an increased surface area for enhanced heat dissipation while retaining access to all of the ports. The right side of the case is designed with a square hole and a stick-on plastic baffle to prevent Wi-Fi signal blocking. The package contains aluminium alloy case, conductive rubber pad and all screws needed. Can be used with DEBIX model A and Model <BR/>Rigid aluminium alloy case<BR/>Increased surface area for enhanced heat dissipation<BR/>A circular hole is reserved on the right side for an external Wi-Fi antenna

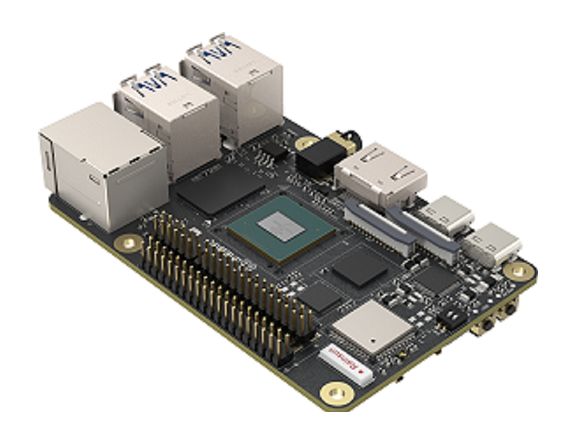

Introducing the DEBIX Model B, a cutting-edge, high-performance single-board computer meticulously crafted for the most demanding technological applications. Building upon the success of its predecessor, DEBIX Model A, this industrial-grade solution excels in challenging environments, offering unparalleled benefits for tech corporations engaged in extreme-temperature projects. Key Benefits of DEBIX Model B Extended Temperature Range: DEBIX Model B confidently operates within an impressive temperature range of -40°C to 85°C, providing exceptional resilience for industrial applications. Shared Technological Advancements: Leveraging the shared DNA with DEBIX Model A, both models boast the formidable i.MX 8M Plus CPU with a 2.3 TOPS NPU, ensuring a seamless transition for users familiar with the previous version. The identical PCB design, appearance, and interface compatibility streamline integration and enhance user experience. Customisable Upgrades: The DEBIX Model B offers a targeted upgrade approach, allowing customers to tailor their boards by selectively upgrading individual chips and components. This flexibility empowers developers to optimise their solutions based on the specific temperature requirements of their real-world application environments. Comprehensive Connectivity: Experience powerful connectivity options with a full suite of features, including Gigabit network support, dual-band Wi-Fi (2.4GHz & 5GHz), Bluetooth 5.0, high-speed USB 3.0, and PCIe support. Advanced Multimedia Capabilities: Elevate multimedia experiences with impressive features such as 1080p60 video encoding and decoding (including H.265 and H.264), 3D/2D graphic acceleration, and advanced audio and voice functionalities. Versatile Software Compatibility: Ensure compatibility with a range of operating systems, including Android 11, Yocto-L5.10.72_2.2.0, Ubuntu 22.04, and Windows 10 IoT Enterprise making it a versatile choice for diverse tech projects. Technical Specifications CPU: NXP i.MX 8M Plus (default), 4 x ARM Cortex-A53, comes with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial grade CPU runs at 1.6GHz. (i.MX 8M Plus series CPU optional) Memory: 4GB LPDDR4 (1GB/2GB optional) Storage: 16GB eMMC (32GB/64GB/128GB/256GB optional), support Micro SD card OS: Android 11, Yocto-L5.10.72_2.2.0, Ubuntu 22.04, Windows 10 IoT Enterprise Note: Model B with 4GB LPDDR4 supports Windows 10 IoT Enterprise Gigabit Ethernet: 1 x RJ45, support POE power supply (need POE power device module), 1 x pin header (without network transformer) Wi-Fi/BT: 2.4GHz & 5GHz WIFI, BT5.0 USB: 4 x USB 3.0 Host Type-A, 1 x USB 2.0 OTG Type-C Audio: 1 x Headphone and Mic combo port HDMI: 1 x HDMI OUT 40-Pin Header: (1) 3 x UART, 2 x I2C, 2 x SPI, 2 x CAN, 6 x GPIO for default, can be reused as System Power Supply Mechanical & Environmental I2S, PWM, SPDIF and GPIO through software configuration. (2) 5V power supply, system reset, ON/OFF LVDS: 1 x LVDS, single & dual channel 8bit, 2 x 15-Pin double-row headers MIPI: 1 x MIPI CSI, support 4-lane 24-Pin 0.5mm Pitch FPC socket, 1 x MIPI DSI, support 4-lane 24-Pin 0.5mm Pitch FPC socket PCle: 1 x PCIe, support PCIe x1, 19-Pin 0.3mm Pitch FPC socket Power: DC 5V/3A Type-C Dimensions: 85.0mm x 56.0mm Operating Temperature: -40℃ to 85℃

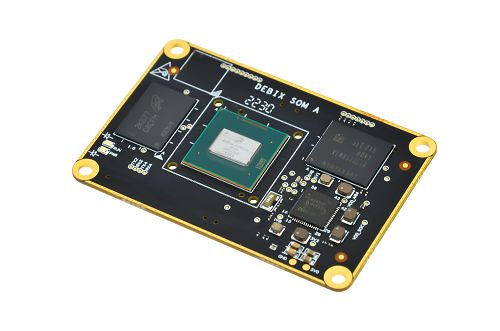

Presenting the DEBIX SOM A, the first System on Module in the DEBIX series. It&#146;s based on the NXP iMX 8M Plus CPU with a 2.3 TOPS NPU it&#146;s tailored for applications requiring cutting-edge capabilities. It offers unified performance, design re-utilisation benefits, and flexible integration into a variety of embedded systems while providing industrial-grade performance and advanced features for a wide range of applications in demanding industries. Key Benefits of the DEBIX SOM A Industrial-Grade Performance: Engineered for demanding applications in Industry 4.0, IoT, smart cities, and multimedia, the DEBIX SOM A delivers industrial-grade performance, ensuring reliability in challenging environments. Comprehensive Software Support: Enjoy a range of operating systems, including Android 11, Yocto-L5.10.72_2.2.0, Ubuntu 22.04, and Windows 10 IoT Enterprise. The inclusion of basic software facilitates fast and direct application development. Real-Time Control: Benefit from real-time responsiveness with the Cortex-M7 core, supported by robust control networks like CAN FD and dual Gigabit Ethernets (one with TSN capability). Ideal for applications demanding precision and real-time control. Advanced Vision System: Equipped with Dual Image Signal Processors (ISPs) and dual camera inputs, the DEBIX SOM A excels in efficient image processing and analysis, enhancing its suitability for applications requiring advanced vision capabilities. Advanced Multimedia Capabilities: Elevate multimedia experiences with 1080p60 video encode/decode (H.265/H.264), 3D/2D graphics acceleration, and multiple audio/voice functionalities. The DEBIX SOM A is designed to meet the diverse multimedia demands of modern tech applications. Technical Specifications CPU: NXP i.MX 8M Plus (default), 4 x Cortex-A53, comes with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial-grade CPU runs at 1.6GHz, and commercial-grade CPU runs at up to 1.8GHz. (i.MX 8M Plus series CPU optional) Memory: 2GB LPDDR4 (1GB/4GB optional, while 8GB is optional when operating temp. is -20°C to 70°C) Flash: Onboard 16GB eMMC (8GB/32GB/64GB/128GB/256GB optional) OS: Ubuntu22.04, Android11, Yocto-L5.10.72_2.2.0, Windows 10 IoT Enterprise. Note: 4GB and 8GB LPDDR4 supports Windows 10 IoT Enterprise, recommend 8GB version. Ethernet: 2 x Gigabit Ethernet controller, one of them supports Time Sensitive Networking (TSN) Display: 1 x HDMI 2.0a, support 3840 x 2160@30Hz, 1920 x 1080@120Hz, 1920 x 1080@ 60Hz / 1 x LVDS, support 4Lane and 8Lane / 1 x MIPI DSI, support 2560 x 1080@60Hz Camera: 2 x MIPI CSI Audio: Up to 6 x SAI (synchronous audio interface), HiFi4 DSP, 1 x SPDIF IN, 1 x SPDIF OUT (Note: 1 x SAI with 8 TX and 8 RX lanes, 1 x SAI with 4 TX and 4 RX lanes, 2 x SAI with 2 TX and 2 RX lanes, 2 x SAI with 1 TX and 1RX lane, all SAIs support I2S and AC97) USB: 2 x USB 3.0, configurable as device or host UART: Up to 4 x UART I2C: Up to 6 x I2C, I2C2∼I2C6 are exposed to the connectors (2 of the five I2Cs are multiplexed as SD1). I2C1 is not allowed to be configured. SDIO: 2 x SDIO SPI: Up to 3 x ECSPI PCle: 1 x PCIe Gen3 CAN: 2 x CAN GPIO: 13 x GPIO for default, other functional pins can be configured as GPIO through software Power Input: 3.5V∼5V/2A Dimensions: 60mm(L) x 40mm(W) x 5.6mm(H) Operating Temperature: -20°C∼70°C default, -40°C∼85°C optional

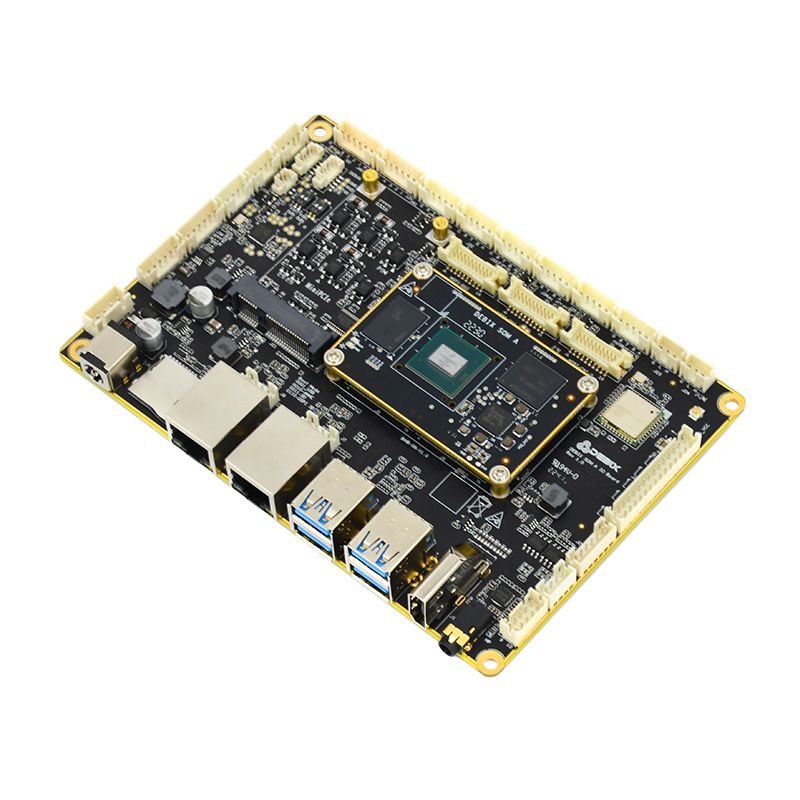

The Polyhex DEBIX SOM A I/O Board is a carrier board that has been tailor-made for use with the DEBIX SOM A. You simply connect the I/O Board to the DEBIX SOM A through 4 double-sided board-to-board socket connectors on its front side. It's all about full-featured interfaces supported by the core board based on i.MX 8M Plus, and provides a perfect solution combining the functions required for industrial control, IoT connection, and multimedia. Key features of the DEBIX SOM A I/O Board Take full advantage of the powerful i.MX 8M Plus processor with the I/O Board&#146;s feature-rich interfaces. Not only does it support booting from eMMC on DEBIX SOM A, it also supports booting from Micro SD and SPI Nor Flash. Designed with industrial and IoT applications in mind, the serial ports, CAN, and GPIO of the I/O Board are designed with physical isolation. Supports 2 Gigabit Ethernet with POE function, 2.4GHz & 5GHz Wi-Fi, and Bluetooth 5.0. Technical specifications HDMI - 1 x HDMI output, Type-A female socket LVDS - 1 x Dual-channel LVDS output, support single-channel 8bit and dual-channel 8bit output (2*15Pin/2.0mm pin header), 1 x Backlight control connector (1*6Pin/2.0mm pin header), 1 x I2C touch panel connector (1*6Pin/2.0mm pin header) MIPI - 1 x 4Lane MIPI DSI (2*10Pin/1.25mm pin header), 2 x 4Lane MIPI CSI (2*10Pin/1.25mm pin header) Audio - 1 x Headphone and mic combo port, 3.5mm socket, compatible with built-in header design, 1 x Line in, analog input, 1 x L&R speaker output, Max. 3W@4Ω (1*4Pin/2.0mm pin header), 1 x SPDIF TX/RX audio connector (1*4Pin/1.25mm pin header) Communication – 2 x Independent MAC Gigabit RJ45 port with POE power supply (need POE power device module), 2.4GHz & 5GHz Wi-Fi and Bluetooth 5.0, external SMA antenna connectors for Wi-Fi and 4G SIM Slot - 1 x Micro SIM slot, push pop-up slot SD Slot - 1 x Micro SD slot, push pop-up slot Mini PCle - Support 4G Mini PCIe module such as Quectel 4G Module, built-in SIM card, etc, Support LoRa Mini PCIe module, Support Mini PCIe expansion for network card, SATA, and serial port USB 3.0 – 4 x USB 3.0 Host, double-layer Type-A interface USB 2.0 - 3 x USB 2.0 Host (1*4Pin/2.0mm pin header) Serial Ports – 6 x Physically-isolated RS232/RS485 (you can choose only one of two), compatible with UART TTL 3.3V without physical isolation, 1 x UART TTL 3.3V system debug port GPIO – 4 x Physically-isolated DI, support dry contact and wet contact, 4 x Physically-isolated DO, support wet contact, compatible with dry contact of external relay CAN – 2 x Physically-isolated CA LED & Key – 1 x Power LED, 2 x Programmable LED, 1 x ON/OFF The above interfaces share one connector (1*6Pin/2.0mm pin header), Built-in small key for eMMC upgrade without disassembly DC Jack - 1 x DC jack for 5.5mm x 2.1mm DC plug, 1 x Built-in power supply connector (1*4Pin/2.54mm pin header) Power Input - DC 12V for default, support wide voltage range of DC 12V∼36V Dimensions - 146.0mm x 102.0mm Operating Temperature - -20 ∼70 for System Video & Audio Communication Other I/O Interfaces Power Supply Mechanical ℃ ℃ default, -40℃∼85℃ optional
